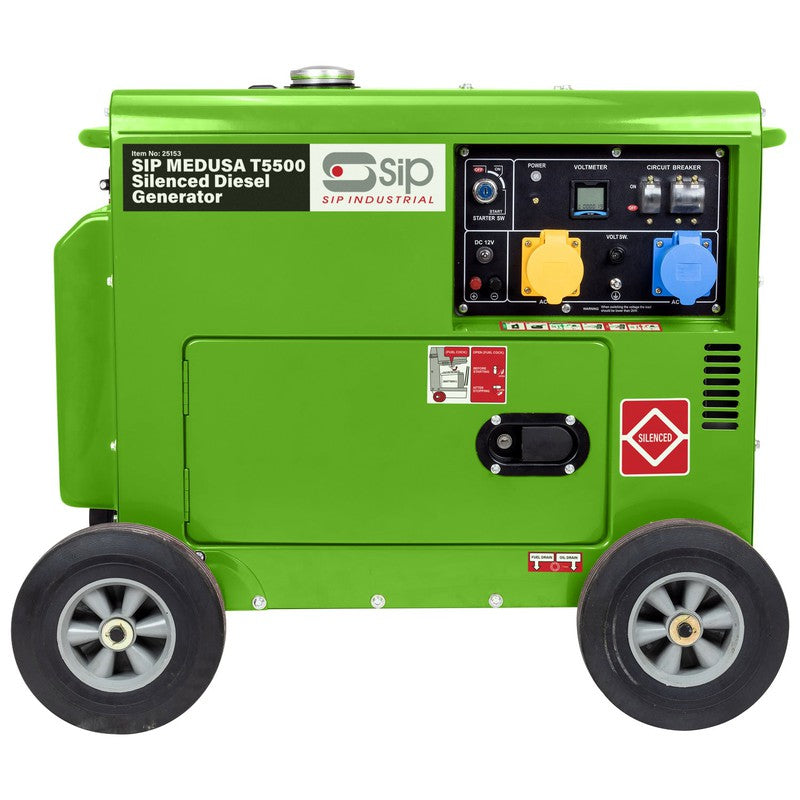

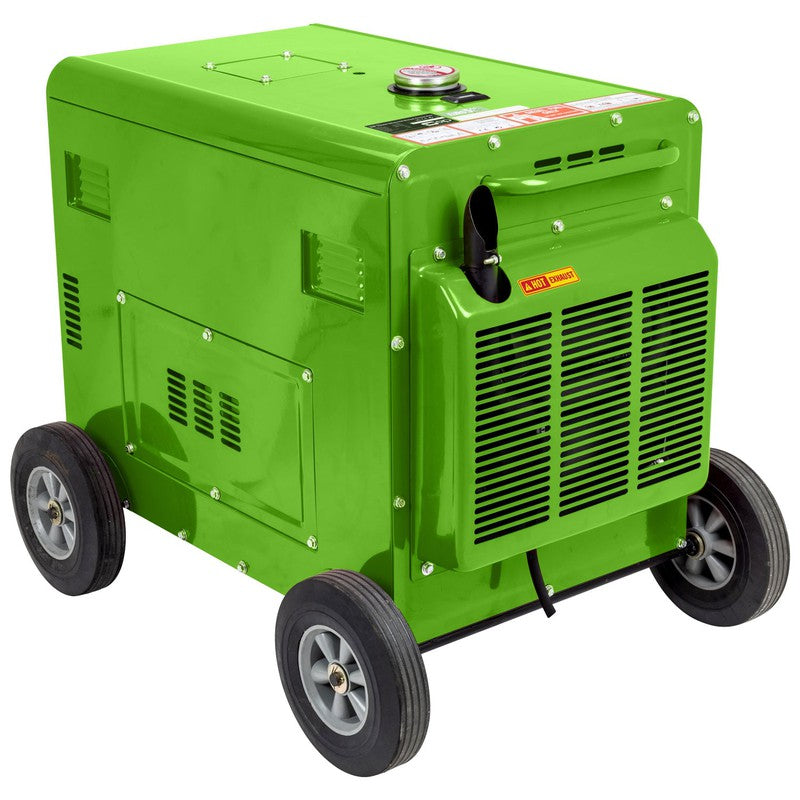

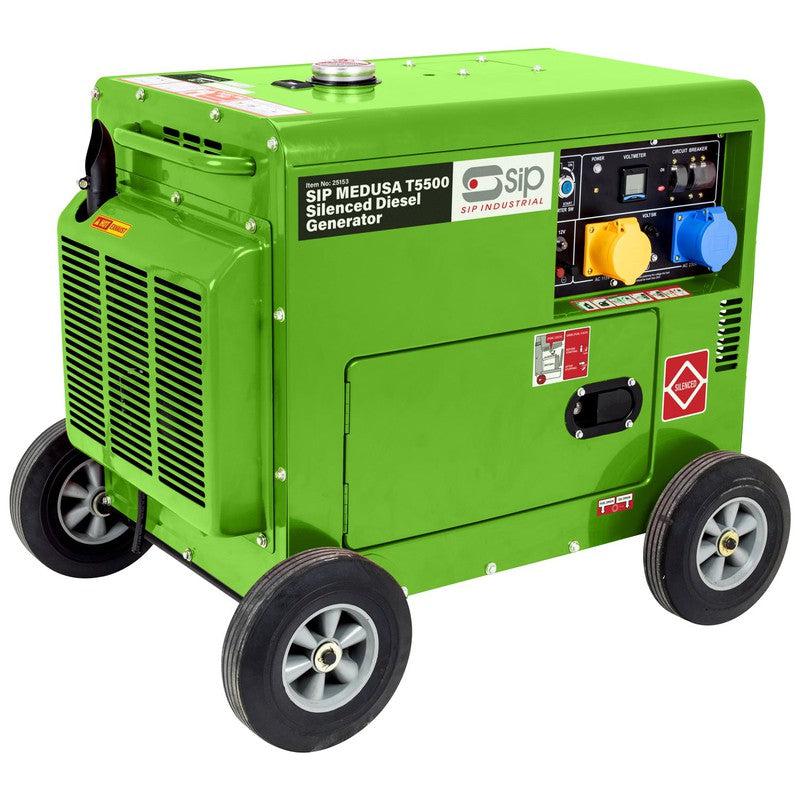

SIP 25153 MEDUSA T5500 Silenced Diesel Generator / 5.5KW

The SIP MEDUSA T5500 Silenced Diesel Generator is a mobile power supply solution suitable for workshops, general construction and mobile hospitality. Other uses include powering machinery, tools and lighting. At peak output it supplies 5.5kVA/5.5kW and at continuous 5kVA/5kW. Overall runtime provides 7.5hrs at 100% load and 15hrs @ 50% load for a dependable supply when needed most.

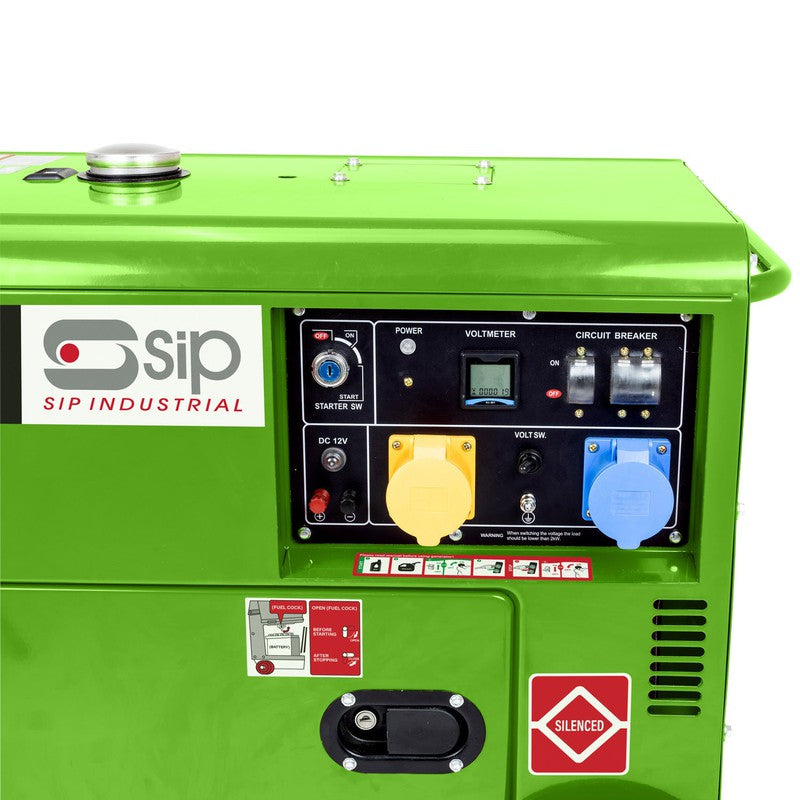

110v (3.5kW) and 230v (5kW) sockets are fitted to the control panel with a changeover switch for selecting supply types. A dual-purpose digital display indicates current volts in use and overall runtime to help monitor usage.

A circuit breaker prevents overload, whilst a mains isolator switch and earth point maximise personal safety.

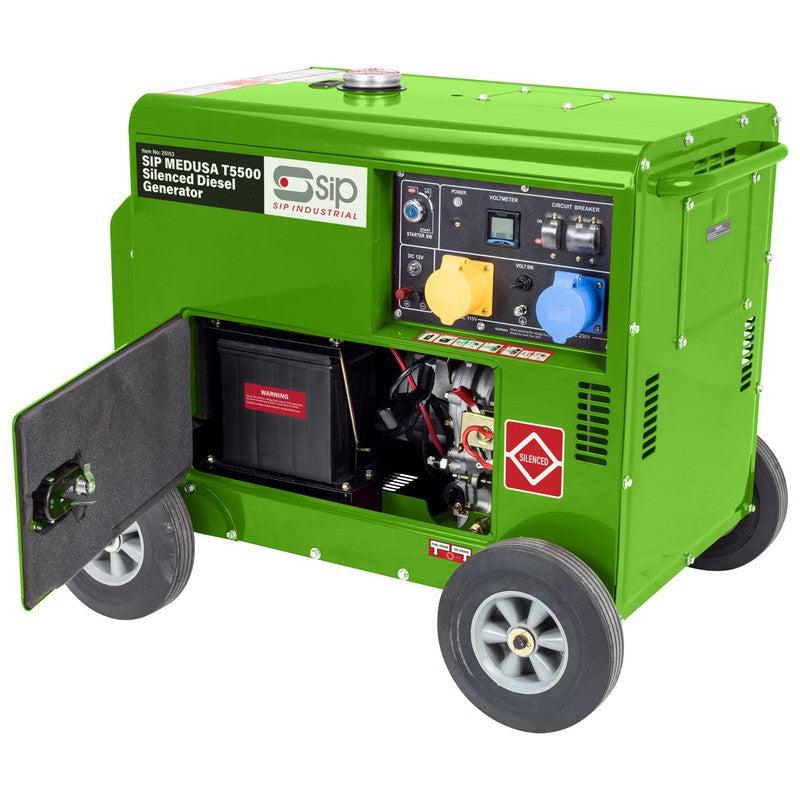

Powerful yet silenced at 97dB(A), it is enclosed in a heavy-duty metal cabinet for soundproofing and to safeguard against chips and damage. An easy-access service panel is fitted.

It is equipped with rough terrain wheels enabling full use in on-site and outdoor areas and has IP23M protection.

Applications & uses: Suitable for powering workshops, general construction and mobile hospitality. Ideal for powering machinery, tools and lighting.

• 110v & 230v supply with Automatic Voltage Regulator (AVR): Provides stable power output for suitable for electrostatic sensitive devices.
• 5.5kVA/5.5kW peak / 5kvA/5kW continuous outputs: Suitable for powering workshops, general construction and mobile hospitality. Ideal for powering machinery, tools and lighting.
• 16ltr fuel tank: 7.5hrs runtime at 100% load and 15hrs at 50% load.
• Heavy-duty silenced generator cabinet: Silenced at 97dB(A) and powder-coated to safeguard against chips and damage.
• Dual purpose digital display: Indicates volts in use and overall runtime to help monitor usage.
• Key ignition electric start: Supplied with 36Ah battery.
• EURO V diesel engine: Full UK and European compliance.
• Circuit breaker for overload protection: Provides greater safety whilst the generator is in use.
• Fitted with rough terrain wheels: Greater portability and use on damp, rough and coarse surfaces.
• SIP 2-Year Standard Silver Warranty*: *Or 1000 working hours parts and labour warranty whichever comes first. T&Cs apply.

Technical Specification

• ITEM NO. 25153
• Engine Type: EURO V 0.5ltr diesel single cylinder
• Start System: Key ignition electric start
• Alternator Type: Single phase AC generator
• Regulation: Automatic Voltage Regulator (AVR)
• Peak / Cont. Output: 5.5kVA (5.5kW) / 5kVA (5kW) continuous
• AC Voltage: 1x 110v @ 3.5kW / 1x 230v @ 5kW
• DC Voltage / DC Current: 12v / 6A
• Fuel Capacity: 16ltr
• Runtime: 7.5hrs @ 100% load / 15hrs @ 50% load
• Battery Specification: 12v 36Ah
• Protection Class: IP23M
• Sound Power (LwA): 97dB(A)
• Net Weight: 155Kg
• Gross Weight: 172Kg
• Product Dimensions: 795(H) x 930(W) x 690mm(D)
• Packaged Dimensions: 910(H) x 955(W) x 740mm(D)
