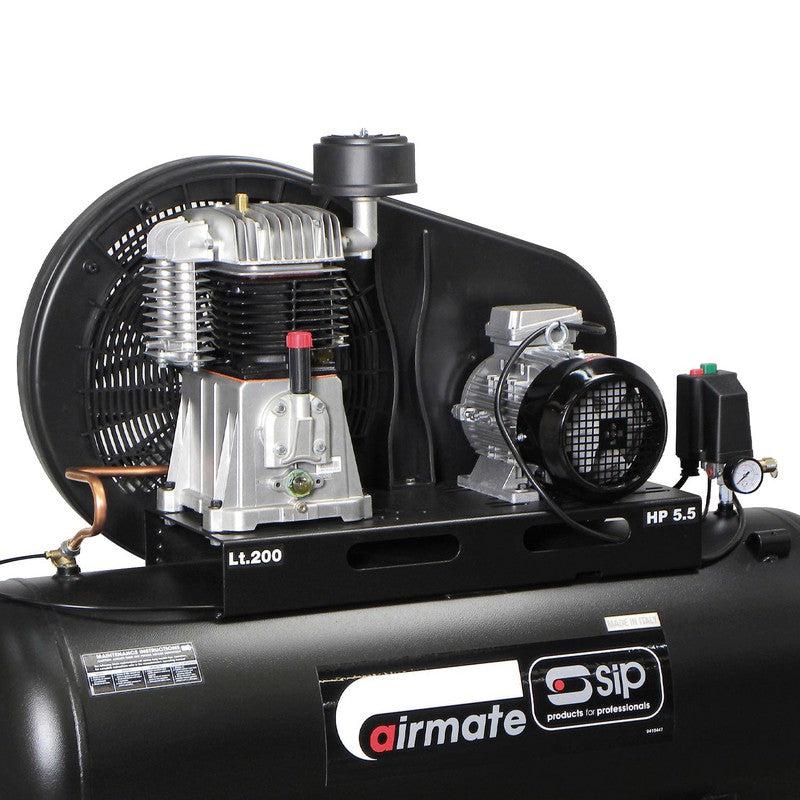

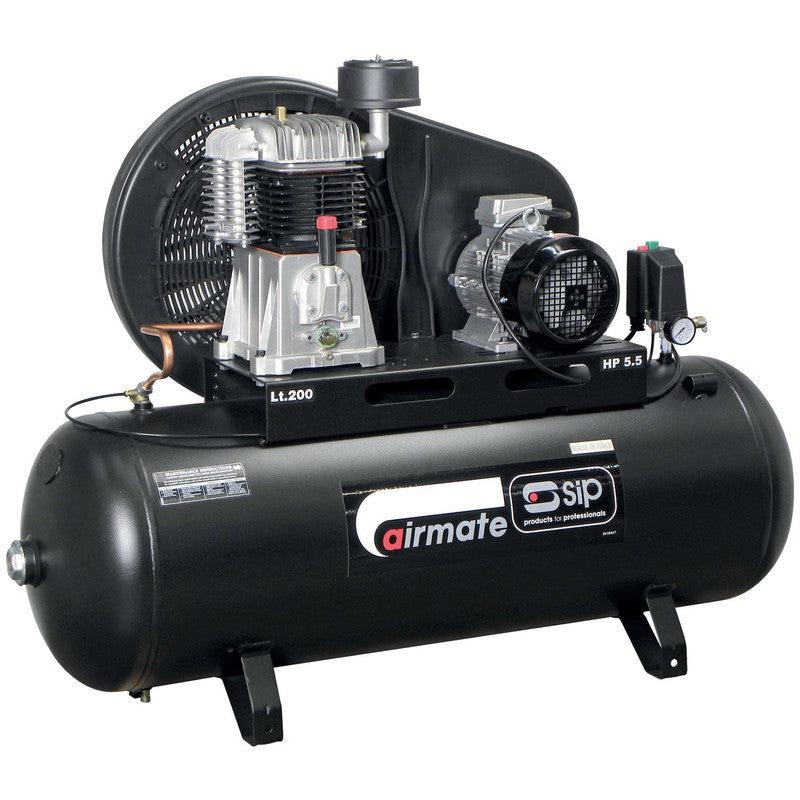

SIP 06583 TN5.5/200 Belt Drive Compressor / 200 Litre / 24 CFM / 145 PSI

The SIP TN5.5/200 200ltr Belt Drive Compressor utilises heavy-duty components including finned manifolds, an oversized crankcase and aluminium aftercooler to provide high-quality compressed air with improved moisture reduction. This provides a higher level of performance and longer compressor life.

A heavy-duty 2-stage pump gives increased durability and efficiency. All this and more mean a reduced weight and increased resistance to corrosion, for durability and long life in a range of environments.

Providing consistently reliable and higher quality compressed air production with reduced moisture than other models, the TN5.5/200 is a must-have for any trade environment where quality air is required for prolonged and demanding applications.

• Oil-lubricated and belt-driven compressor

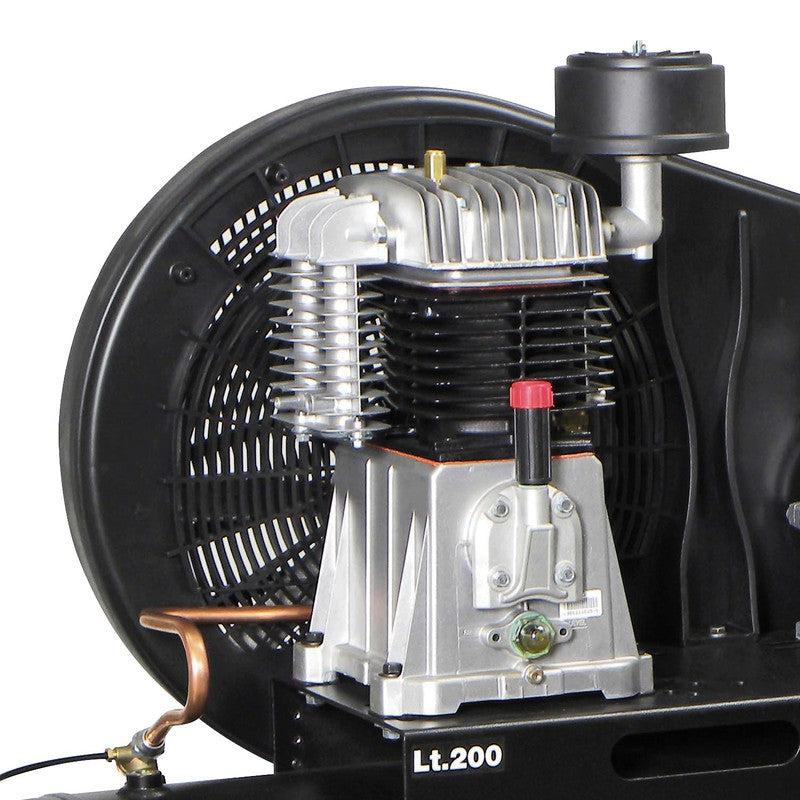

• Heavy-duty 2-stage pump for high efficiency
• Extra-strong moulded plastic belt and flywheel guards for improved safety
• Heavy-duty cast iron barrel for an increased service life
• Finned manifolds and aluminium aftercooler for reduced moisture; aluminium ensures a reduced weight and higher corrosion resistance
• Oversized crankcase for improved lubrication
• Supplied with SIP Anti-Vibration Mounts
• SIP 2-Year Standard Silver Warranty
• Manufactured in Italy

Technical Specification

• ITEM NO. 06583
• Input Supply: 400v (20A) 3-PHASE

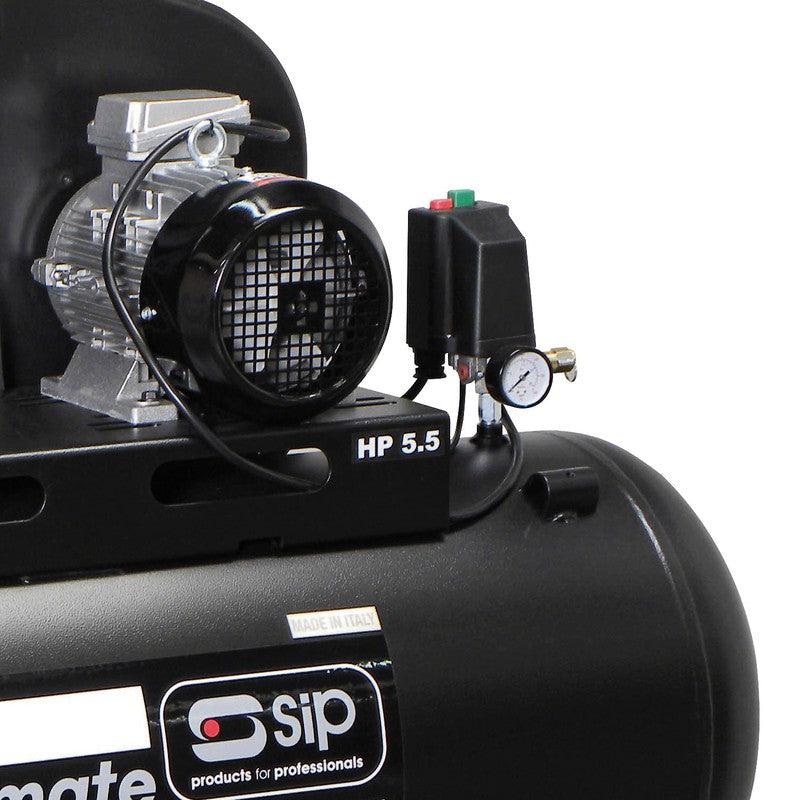

• Motor Power: 5.5hp (4.1kW)

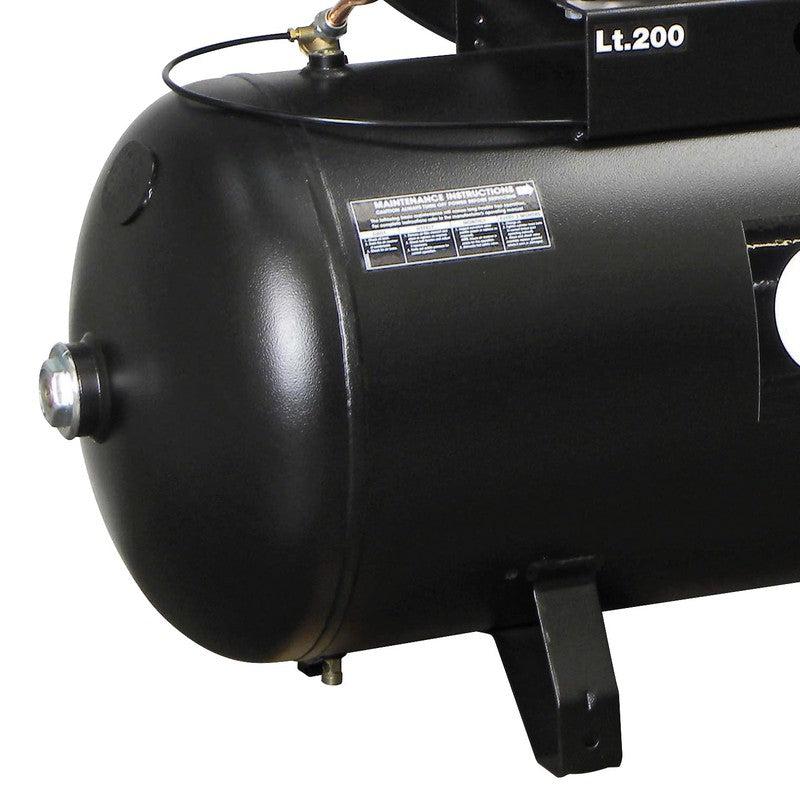

• Receiver Size: 200ltr
• Piston Displacement: 24.00CFM (680ltr/min)
• Free Air Delivery (FAD): 18.00CFM (510ltr/min)
• Max. Air Pressure: 145psi (10bar)
• No. of Cylinders: 2 cylinders
• No. of Stages: 2 stages
• Net Weight: 112Kg
• Gross Weight: 127Kg
• Product Dimensions
• Packaged Dimensions: 1220(H) x 1440(W) x 470mm(D)
