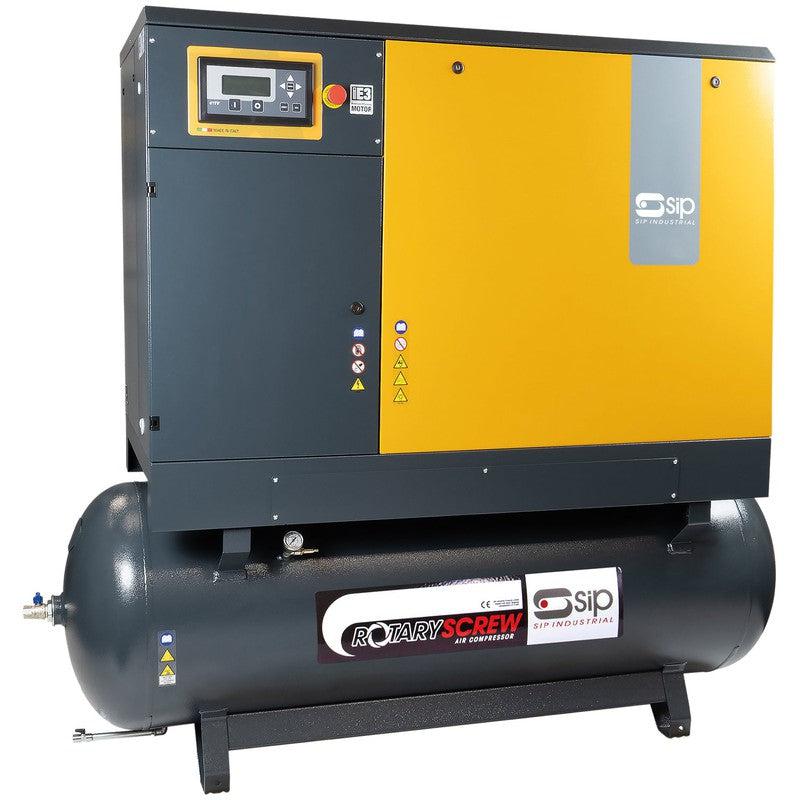

SIP 06535 RS11-10-500BD/FF Rotary Screw Compressor / 500 Litre / 53 CFM / 145 PSI

The SIP RS11-10-500BD/FF 500ltr Rotary Screw Compressor is a fully integrated workstation complete with air treatment module that includes a generously-sized refrigeration dryer with a 3¡C dew point, 10µm inlet filtration and 1µm outlet filtration.

Acting as an all-in-one system, this compressor has a compact and modern design that houses the air end, filters, controller and receiver in a single modular unit, providing high-quality compressed air production in a space-saving solution.

Unlike other screw compressors on the market, the integrated air system provides dry and clean air to a quality standard classification 2-4-2 in accordance with ISO 8573-1.

This compressor is designed for continuous use in demanding applications.

Each RS11-10-500BD/FF is built to the highest standard in Italy, and then tested by experienced SIP technicians in the UK prior to dispatch for added peace-of-mind.

• Fully automatic, integrated, and self-monitoring
• All-in-one system; compact and modern design for easy servicing access

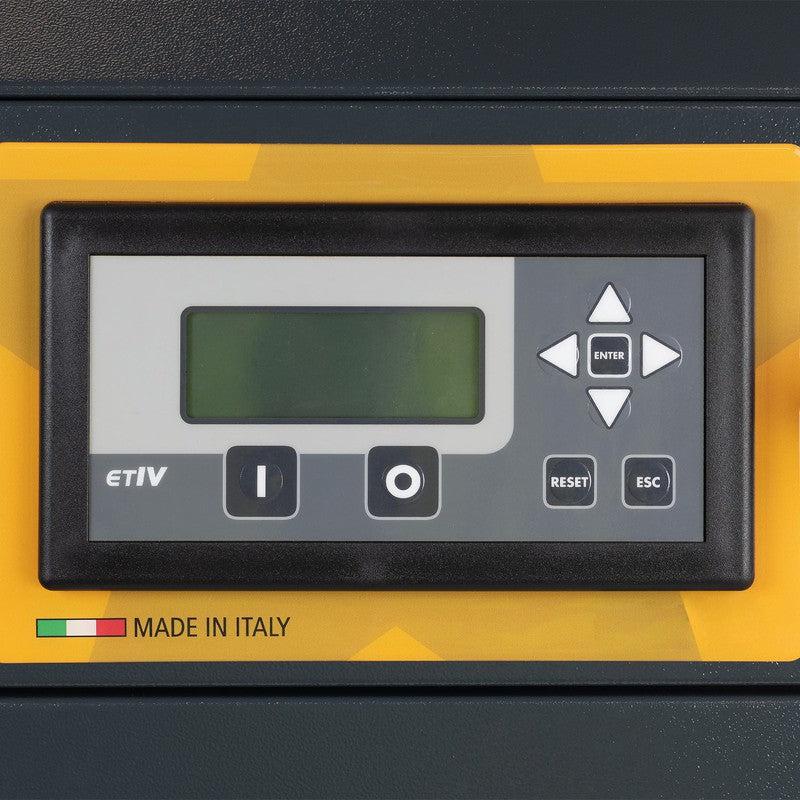

• Electronic ETIV controller with digital display; easy-to-use and reliable

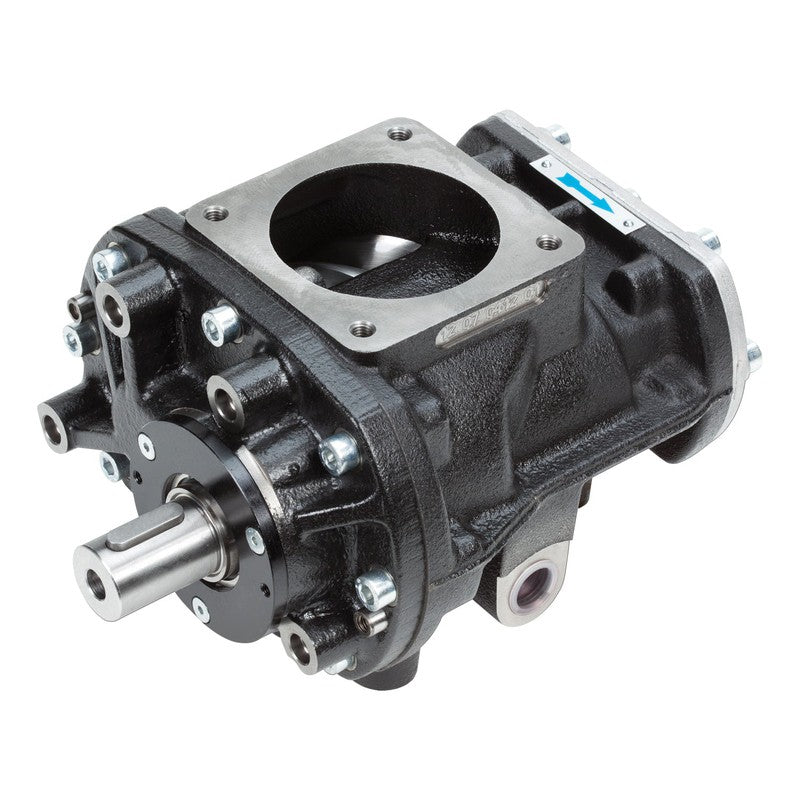

• Italian-manufactured FS26 TF air end delivers high-quality constant airflow
• Integrated air system provides both dry and clean air to quality standard classification 2-4-2, in accordance with ISO 8573-1
• Air end, dryer, filters, controller, and receiver are in a single modular unit, providing a comprehensive space-saving solution
• Dry tank technology for constant airflow and reduced corrosion

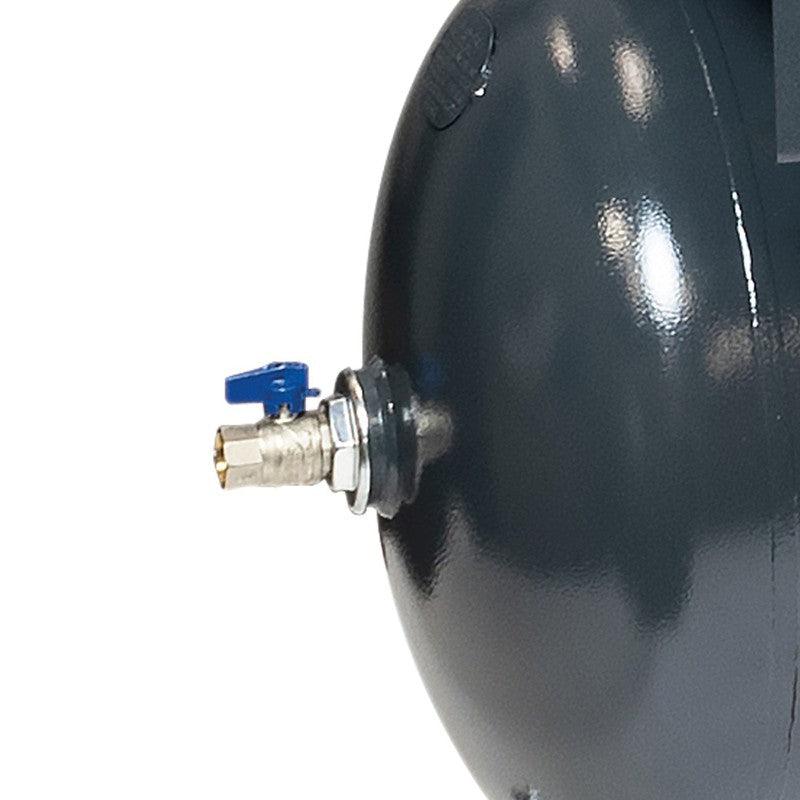

• Automatic condensate discharge and status via electronic panel
• 10µm inlet filtration and 1µm outlet filtration
• 100% UK tested by SIP before dispatch
• SIP 2-Year Standard Silver Warranty
• Manufactured in Italy

Technical Specification

• ITEM NO. 06535
• Input Supply: 400v (40A) 3-PHASE
• Motor Power: 11kW (14.75hp)
• Receiver Size: 500ltr
• Free Air Delivery (FAD): 53.00CFM (1500ltr/min)
• Max. Air Pressure: 145psi (10bar)
• Filtration Level: 10µm particulate / 1µm oil filter
• Refrigeration Dryer: 3¡C Dew Point
• Air Quality Level: 2-4-2 (ISO 8573-1*)
• Noise Level: 65dB(A)
• Net Weight: 421Kg
• Gross Weight: 436Kg
• Product Dimensions: 1980(H) x 700(W) x 1670mm(D)
• Packaged Dimensions: 2000(H) x 775(W) x 1800mm(D)
