Description

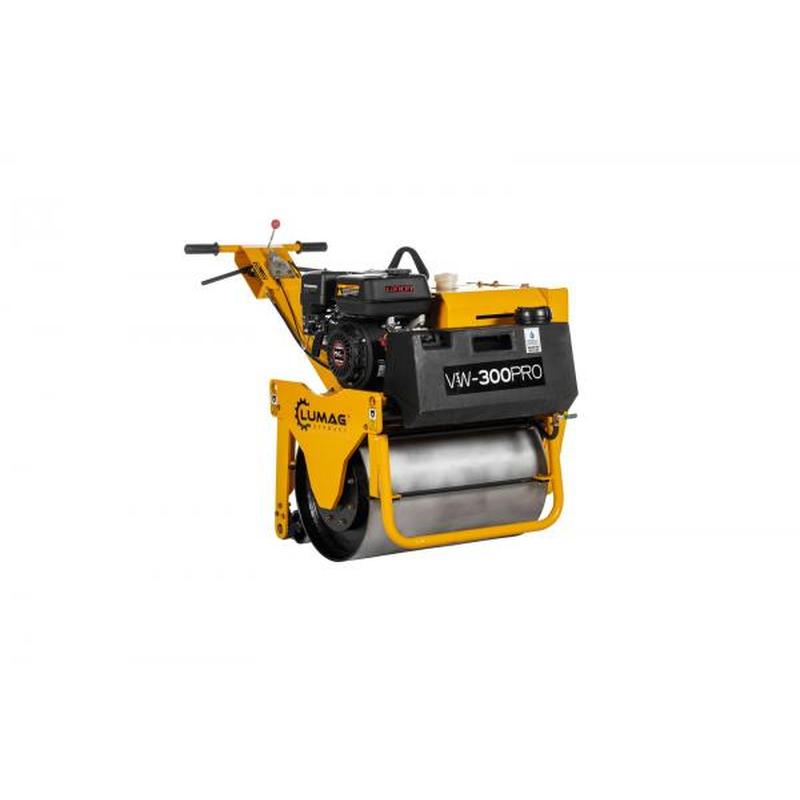

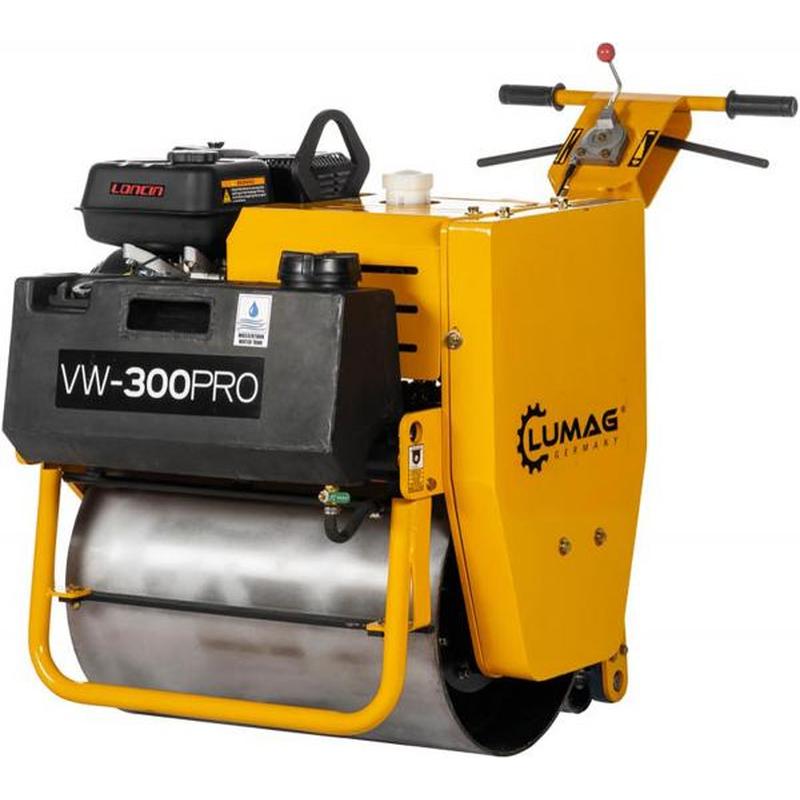

Introducing the Lumag VW300PRO Vibrating Roller, a versatile solution for medium-duty compaction tasks in path construction, gardening, landscaping, paving, and road repair. Engineered for reliability and efficiency, this vibratory roller combines advanced features with robust construction to tackle a variety of projects with ease.
Equipped with an infinitely variable hydrostatic drive, the Lumag VW300PRO achieves speeds of up to 2.1 km/h in forward motion and 1.4 km/h in reverse, providing precise control and maneuverability on diverse terrain. Its compact design and small lateral protrusion ensure optimal compaction even in tight spaces, allowing work right up to walls or curbs.

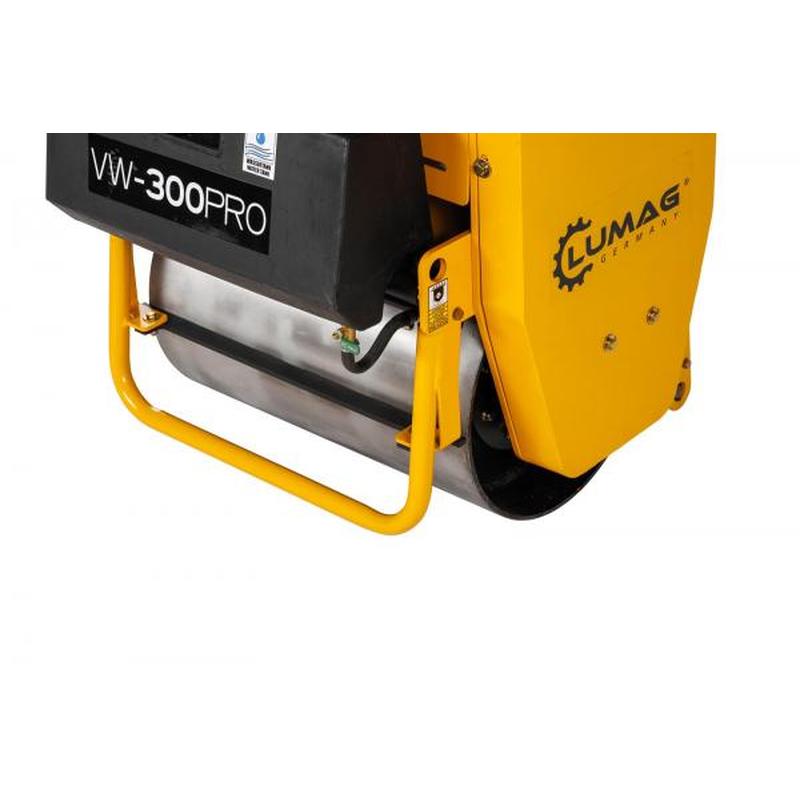

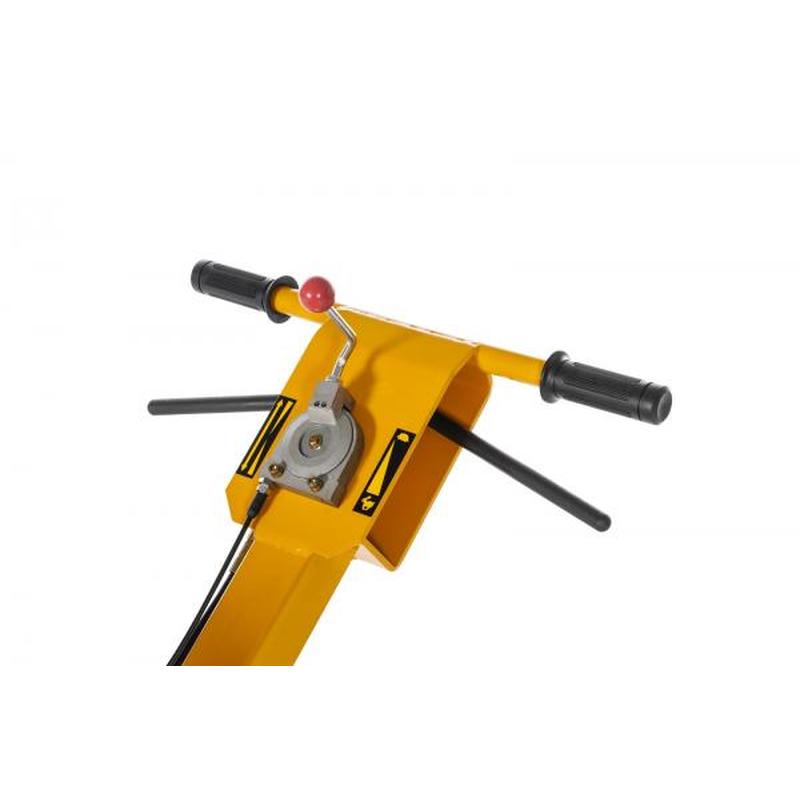

Designed with user convenience and safety in mind, this roller features front and rear scrapers, along with a robust protective frame with central single-point suspension and front and rear safety supports. The guide drawbar can be positioned vertically for easy transport, while the overhead water tank ensures consistent water sprinkling during blacktop work, enhancing compaction efficiency and surface quality.
Powered by a reliable 1-cylinder, 4-stroke gasoline engine G200F delivering 4.0 kW of power at 3,600 rpm and boasting a displacement of 196 cm³, this roller ensures consistent performance in demanding applications. The German-designed vibratory roller features an extremely durable and robust Japanese gearbox, ensuring trouble-free operation in commercial settings.
With a working width of 600 mm and a maximum working speed of 2.1 km/h forward and 1.4 km/h reverse, the Lumag VW300PRO delivers efficient compaction across various surfaces. Its hydrostatic drive system and mechanically driven excitation system provide consistent compaction performance, with a frequency of 72 Hz and an amplitude of 0.6 mm, generating a centrifugal force of 13.5 kN.
Operating at a sound power level of 108 dB(A), this roller ensures productivity without compromising operator comfort. With a static line load of 4.4 kg/cm and a deadweight of approximately 266 kg, it offers stability and reliability in operation. Packaged in dimensions of 870 x 770 x 1220 mm and weighing approximately 262 kg (net) and 312 kg (gross), the Lumag VW300PRO is ready to tackle your compaction needs with precision and efficiency.
Specifications
| Motor / drive | 1-cylinder 4-stroke OHV LONCIN G200F engine f. unleaded petrol |
| Engine power | 4.0 kW at 3,600 rpm |
| displacement | 196 cm ³ |
| Fuel tank | 3.6 l |
| Motor oil | 0.6 l |
| Start system | Reversing starter |
| Drive type | mechanically |
| Working width | 600 mm |
| Driving speed forward / backward | Max. 2.1 / max. 1.4 km / h |
| Climbing ability, max. | 20 % |
| Driving drive | hydrostatic |
| Troubler system drive type | mechanically |
| frequency | 72 Hz |
| amplitude | 0.6 mm |
| Centrifugal force | 13.5 kN |
| Water tank | 16 l |
| Oil tank | 50 ml ( CF-4 20W / 50 ) |
| Sound power level LWA | 108 dB ( A ) |
| Static line load | 4.4 kg / cm |
| Operating weight | approx. 266 kg |
| Transport weight ( net / gross ) | approx. 262/312 kg |
| Packaging dimensions ( LxWxH ) | 870 x 770 x 1220 mm |
