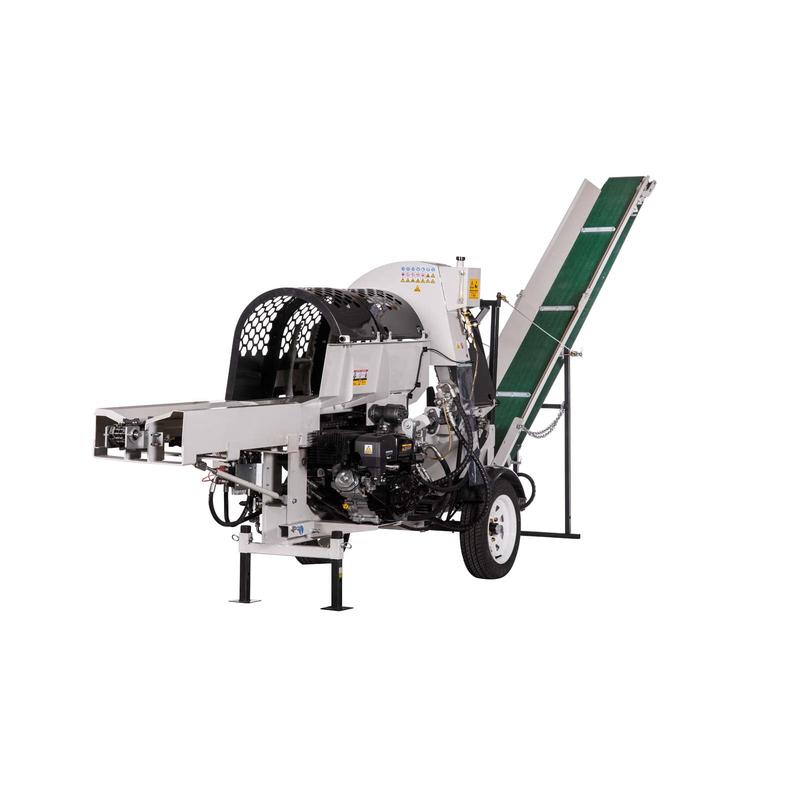

Description
– Simple and easy operation with cross-lever control
– Automatic chain lubrication of the saw chain
– Processing of logs by sawing and splitting in one pass
– The chainsaw is equipped with my STIHL brand saw chain
– 5-8 m³ of wood/hour can be processed
– Automatic removal of the material by means of a belt conveyor
– Powerful 9.2 kW petrol engine for fast work, even with larger logs with a diameter of 50 cm – Hydraulic
chain saw and log holder operation for quick and easy work
– Incl
to supply material
NOW:
Incl. control valve set + PARKER pump & hydraulic motor!
Specifications
| engine / drive | Gasoline engine 420cm³, 9.2kW |
| Chainsaw hydraulic motor | max. 4,500 rpm |
| Hydraulic motor conveyor | max. 284 rpm at 110 bar, 285 Nm |
| chainsaw | hydraulic |
| Chain (STIHL) | C3621 000 0077/0.375/1.5mm |
| sword | 55 cm |
| gap length max. | 50-55cm |
| gap diameter max. | 10 to 50 cm |
| Working speed | 5 cm / sec. |
| rewind speed | 3 cm / sec. |
| splitting force | 20T |
| discharge belt (LxWxH) | 3200x250x2200mm |
| conveying speed of the conveyor belts | 0.5m/sec. |
| Own weight including discharge belt | 825kg (715kg + 110kg) |
| Packaging dimensions automatic firewood processor incl. conveyor belt (LxWxH) | 2200x1050x1250mm |
| Packing dimensions discharge conveyor (LxWxH) | 1900x450x585mm |
