Description

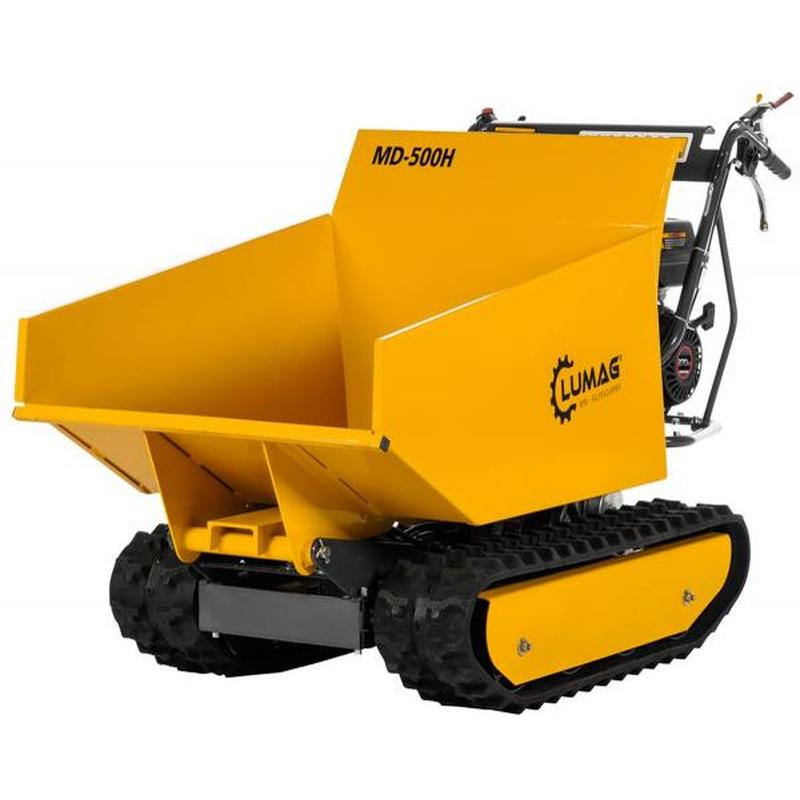

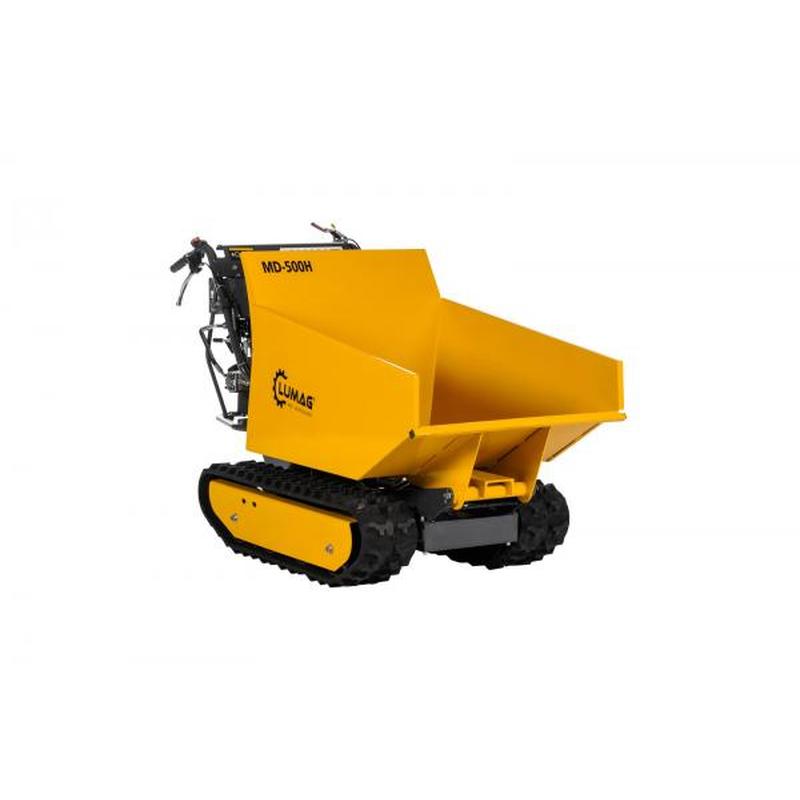

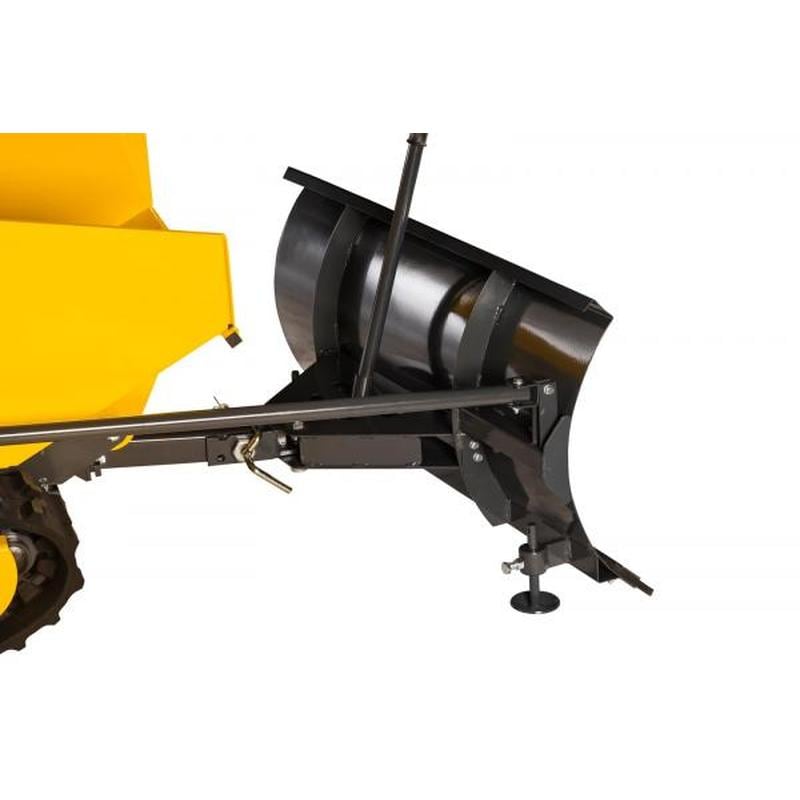

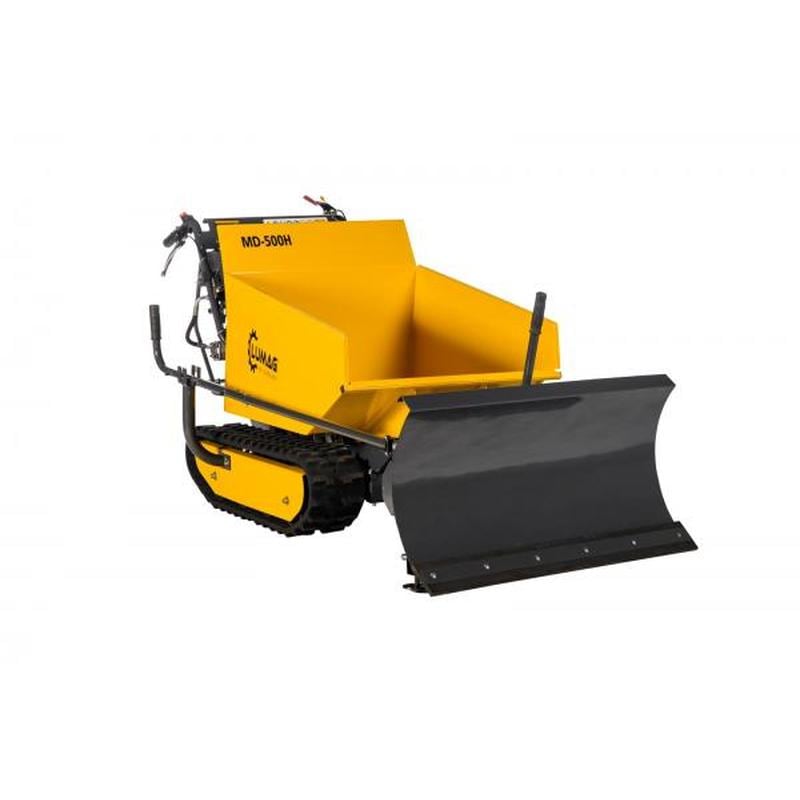

The Lumag MD500H mini dumper is based on the original Lumag MD500 chassis. It offers the same reliable, easy starting Loncin engine and simple drive system but with a “dumper style” tipping butt that is more suited for shifting sand, soils etc. Tipping is fully mechanised by the hydraulic ram. The machine is still only 700mm wide and great to get in those hard to reach areas. MD300 style box and Plough are all available as extras.
Equipment features:
– MD-500H – the versatile petrol-powered mini crawler dumper with tipping hydraulics
– As the perfect helper for all transport work, the MD-500H provides valuable services in many industries for a wide variety of activities.
– The MD-500H easily transports loads of up to 500 kg.
– An extremely narrow design and compact dimensions bring the MD-500H safely to the place of use even through narrow gates and paths.
– Bulk and piece goods are emptied using a hydraulic tipping skip.
– The massive steel construction and the powerful hydraulic cylinder in combination with the simple, intuitive control make the MD-500H the ideal helper.
Specifications

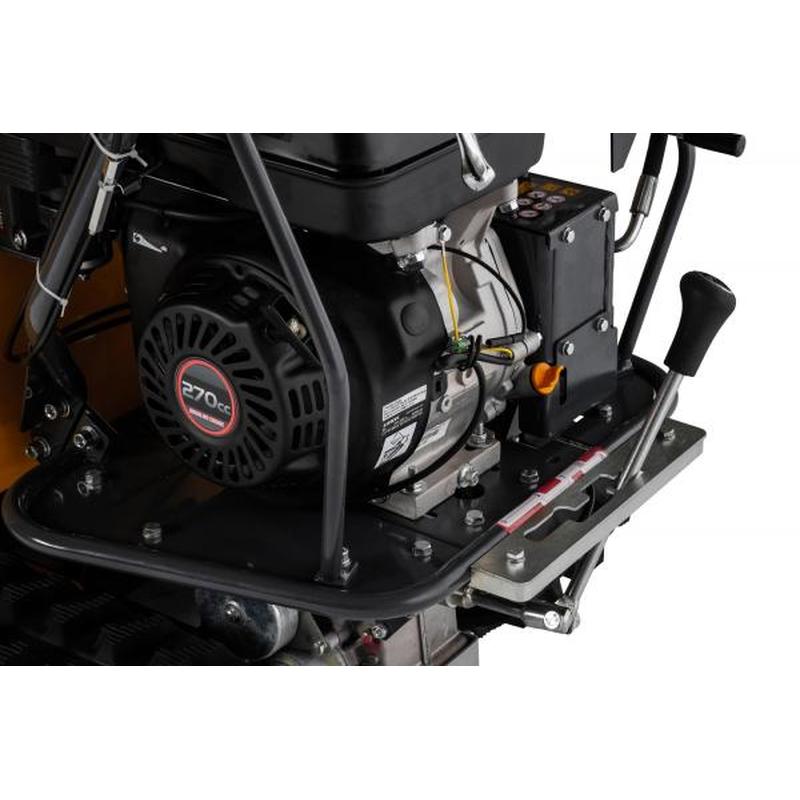

| engine | 1-cylinder 4-stroke OHV LONCIN engine |
| Displacement | 270 cc |
| power | 6.0 kW |
| Operating speed | 3,000 rpm |
| Starting device | Reversing starter |
| drive | Gear transmission |
| steering | Steering brake |
| Tilting container (LxWxH) | 1000 x 700 x 450 mm |
| own weight | 275 kg |
| Load max. | 500 kg |
| Capacity | 212 l |
| Tilting device | Hydraulic, tiltable forwards |
| hydraulic pump | 12l / min (at 3,000 rpm) |
| Working pressure max. | 200 bar |
| Working speed forwards / backwards, max. | 3.6 / 1.2 km / h |
| Dimensions (LxWxH) | 1650 x 715 x 960 mm |
