Description

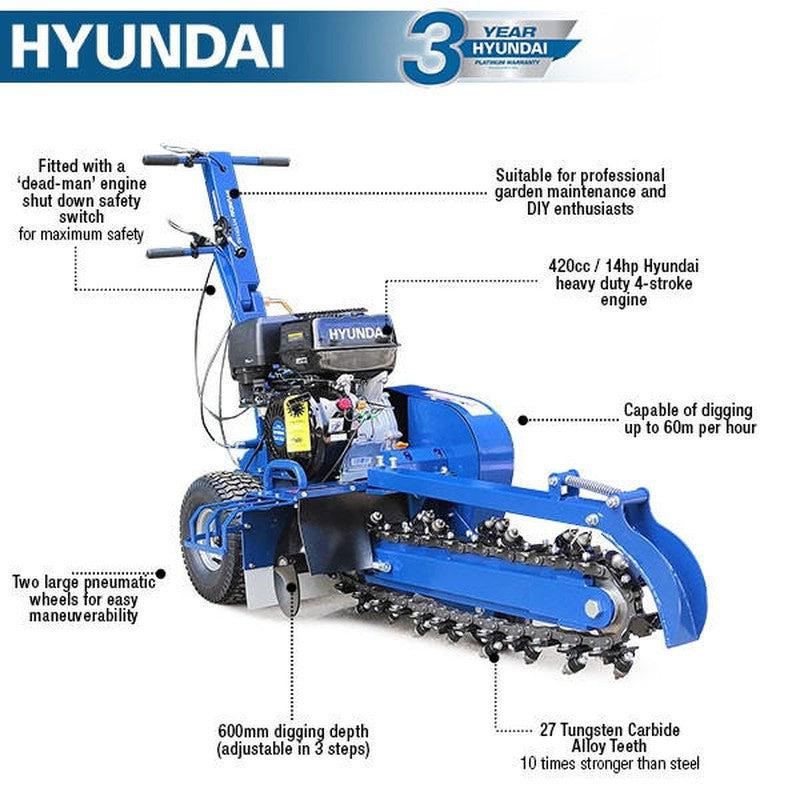

Key Features
- 420cc / 14hp Hyundai heavy duty 4-stroke engine.
- Two large pneumatic wheels for easy maneuverability.
- Wheel brake and engine throttle controlled directly from the handle bars.
- 600mm digging depth (adjustable in 3 steps).
- 27 Tungsten Carbide Alloy Teeth - 10 times stronger than steel.
- Easy lift handles.
- Covered by Hyundai UK 3-year platinum warranty.
- Full UK service and parts operation to maintain your trencher for years to come.

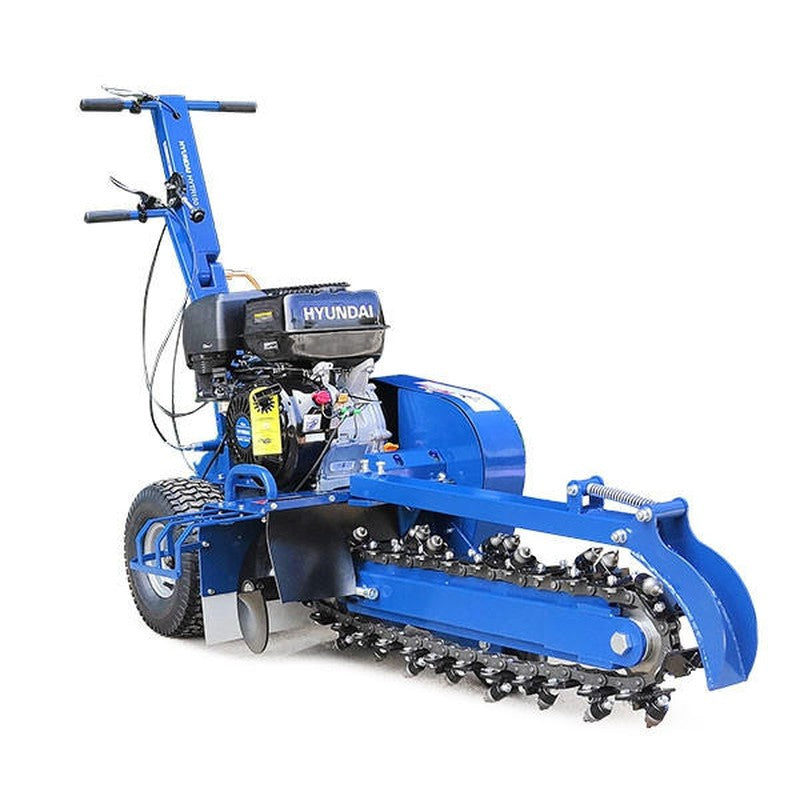

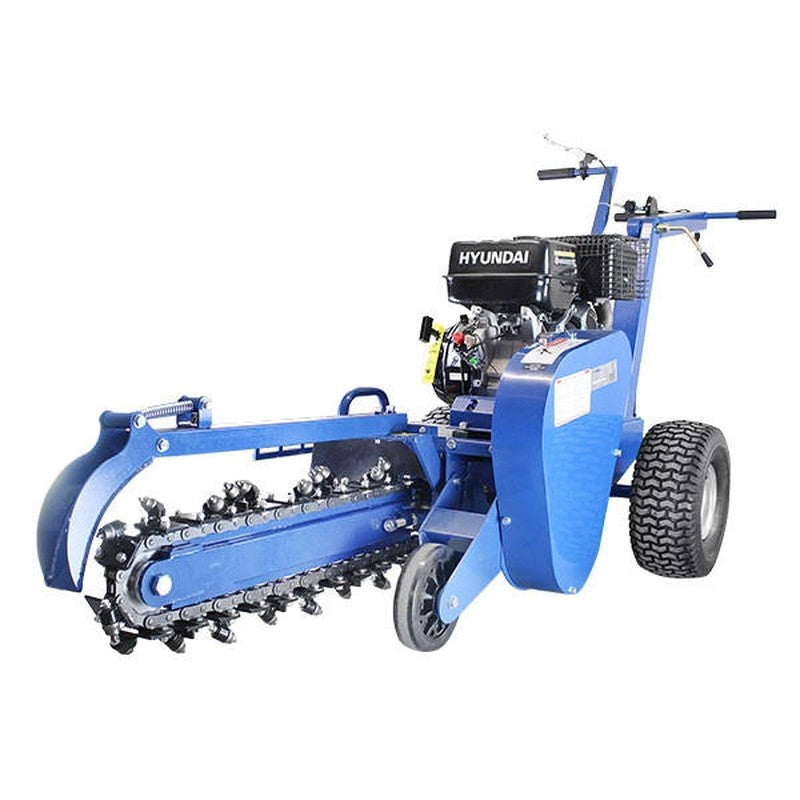

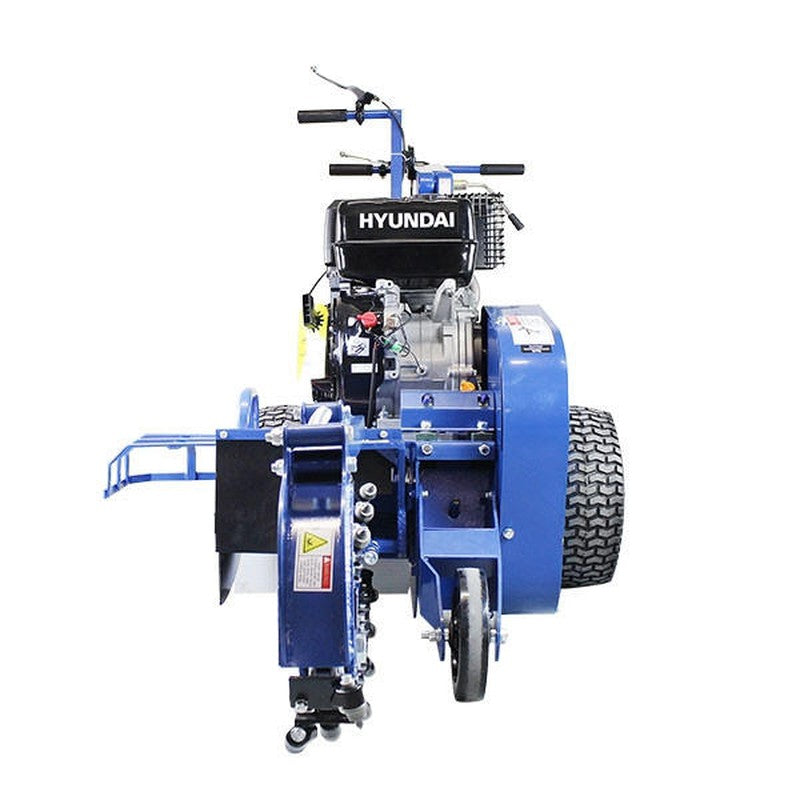

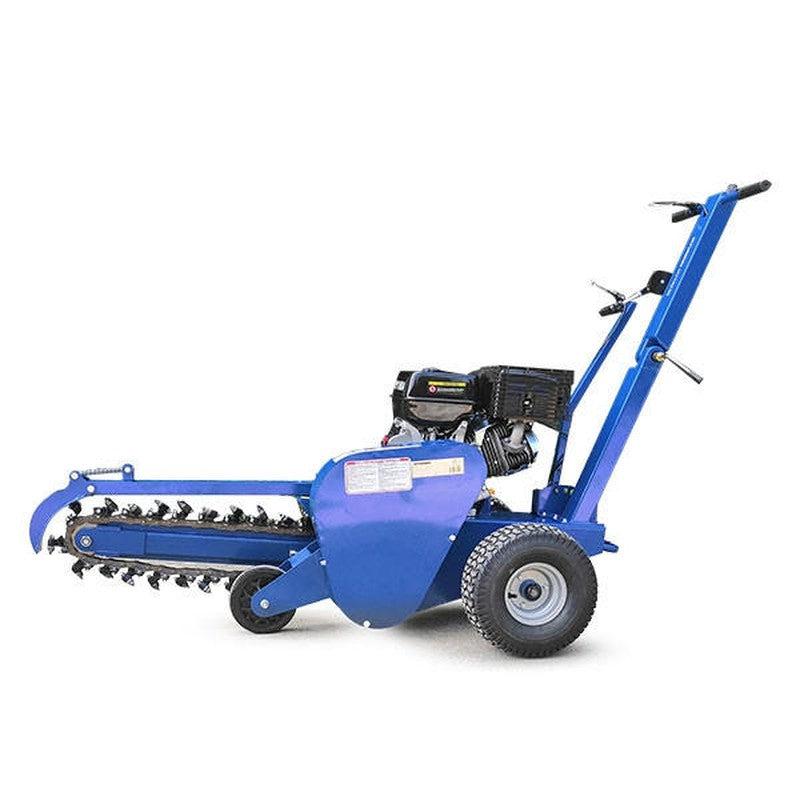

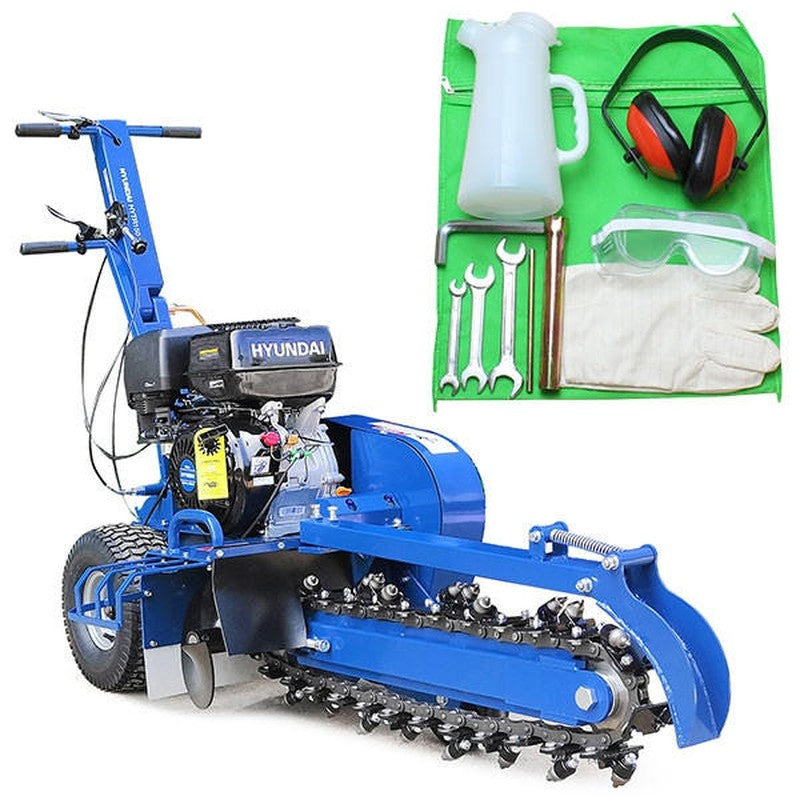

Hyundai 420cc/14hp Petrol Trencher

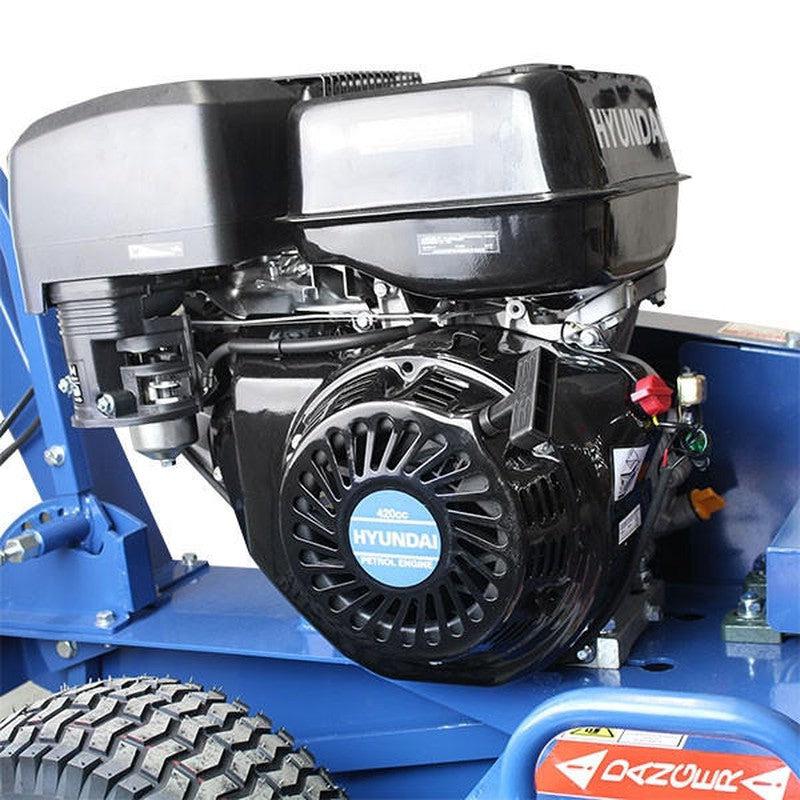

The HYTR150 is an extremely powerful petrol trencher from Hyundai, powered by the IC420 420cc / 14hp 4-stroke Hyundai engine, the HYTR150 is capable of digging trenches 600mm deep quickly, efficiently and safely.
Ideal For Restricted Access Sites

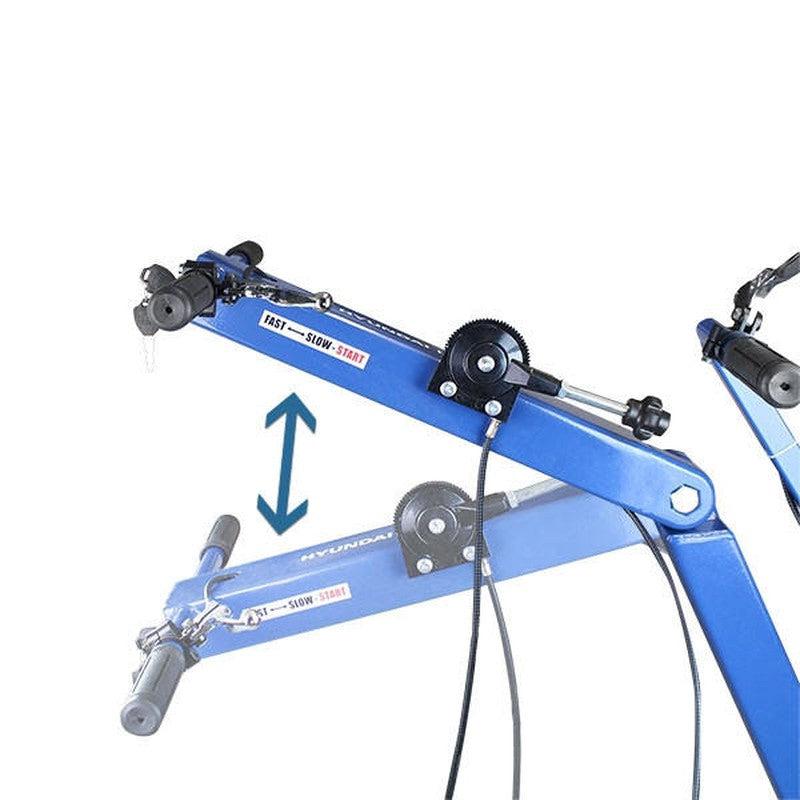

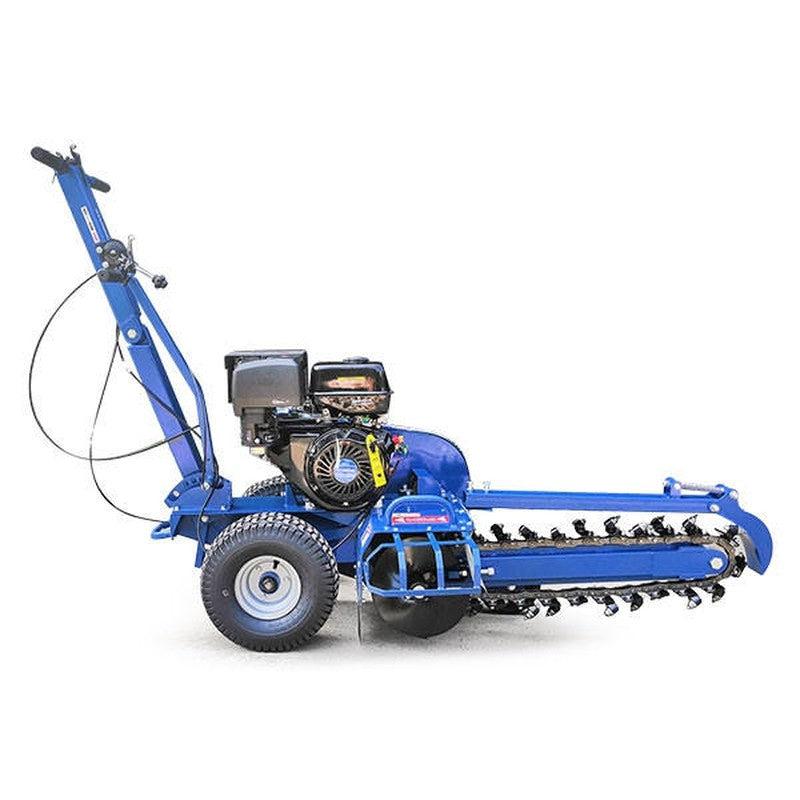

Weighing 185kg, the HYTR150 ground trencher is great for laying pipes, cables and drainage. It is easy to maneuver thanks to its large adjustable handlebars and heavy duty pneumatic tyres. Ideal for jobs where access is restricted allowing the operator to dig a trench at any location, the HYTR150 at 720mm wide, can fit through a standard garden gate.
3 Cutting Heights

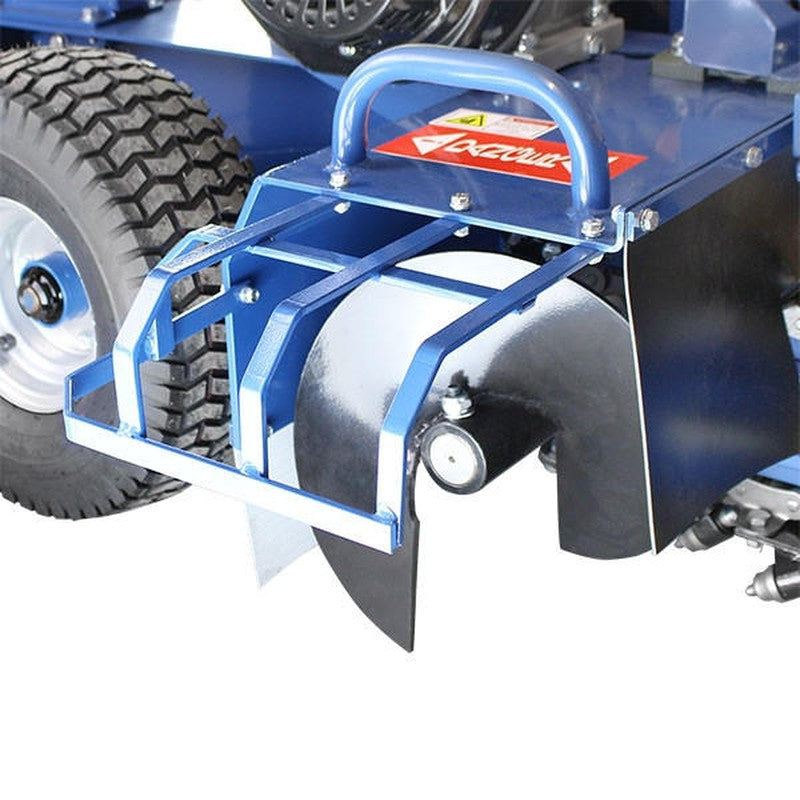

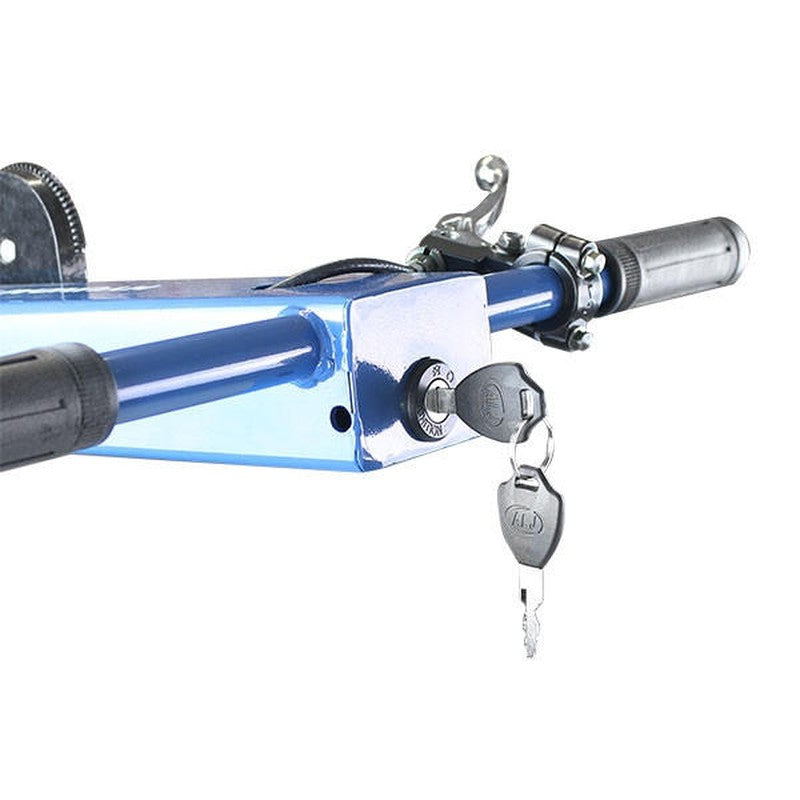

Built to make tough trenching faster and less demanding the cutting bar can be adjusted to 3 cutting depths upto 600mm deep and can dig upto 60m per hour. The soil is cleared from the chain area by a side mounted auger. The wheel brake and engine throttle are controlled directly from the handlebars for maximum comfort and control.
Professional use
Suitable for professional garden maintenance, drainage, construction and serious DIY enthusiasts the HYTR150 ensures you will never struggle with back breaking and time consuming trenching again like digging by hand hand. The HYTR150 garden trencher is fitted with a ‘dead-man’ engine shut down safety switch for maximum safety.

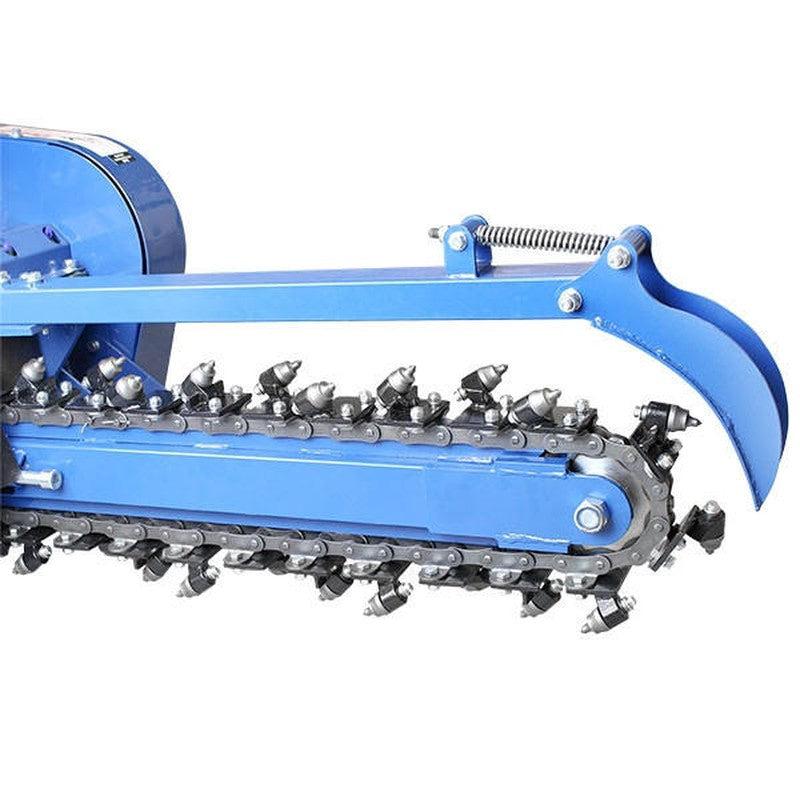

27 Teeth
The 27 replaceable teeth, tipped with mining-grade tungsten carbide which is 10 times harder than steel and can dig trenches within seconds.
Low Service And Maintenance
With low service and maintenance requirements, the HYTR150 is incredibly user-friendly, and has full Hyundai UK parts back up.
Warranty
Covered by Hyundai UK 3 Year Platinum Warranty.
Specifications
| Model | HYTR150 |
|---|---|
| Start Method | Electric or Recoil |
| Trench Capacity (m/hr) | 60 |
| Trench Depths | 4 |
| Trench Depth (mm) | 150 / 300 /450 /600 |
| Trench Width (mm) | 100 |
| Chain Length (mm) | 2000 |
| Chain Type | 27 Tungsten Carbide Alloy Teeth |
| Max Chain Speed (RPM) (m/min) | 550 |
| Clutch Type | Centrifugal |
| Handle Type | Adjustable Soft Grip |
| Safety Features | Engine Kill Switch |
| Engine Model | IC420 |
| Engine Type | OHV Single Cylinder 4 Stroke |
| Engine Size (cc) | 420 |
| Rated Power (hp) | 14 |
| Rated Speed (RPM) | 3600 |
| Fuel | Petrol |
| Fuel Capacity (L) | 6.5 |
| Engine Oil | SAE 30 or 15W40 |
| Engine Oil Capacity (ml) | 1100 |
| Gross Weight (kg) | 195 |
| Net Weight (kg) | 170 |
| Wheel Size (inches) | 15 |
| Wheel Diameter (mm) | 380 |
| Sound Level (db) | 116 |
| Fully Assembled Dimensions (H x W x L) (mm) | 1100 x 720 x 2100 |
| Package Dimensions (H x W x L) (mm) | 960 x 780 x 1120 |
| Engine Capacity (CC) | Over 200 |
| Fuel/Power Source | Petrol |
| Product Type | Trencher |
| Warranty (years) | 3 |
| Commercial Warranty (years) | 1 |
| Model EAN | 5056275723002 |
| In The Box | HYTR150 Trencher & Manual |
