Description
Key Features
- High-quality construction: Reliable air compressor perfect for a range of applications
- 500L tank & 15hp motor: Produces an impressive 145psi / 10bar output
- Variable speed drive: Matches output to requirement for increased efficiency and longer life

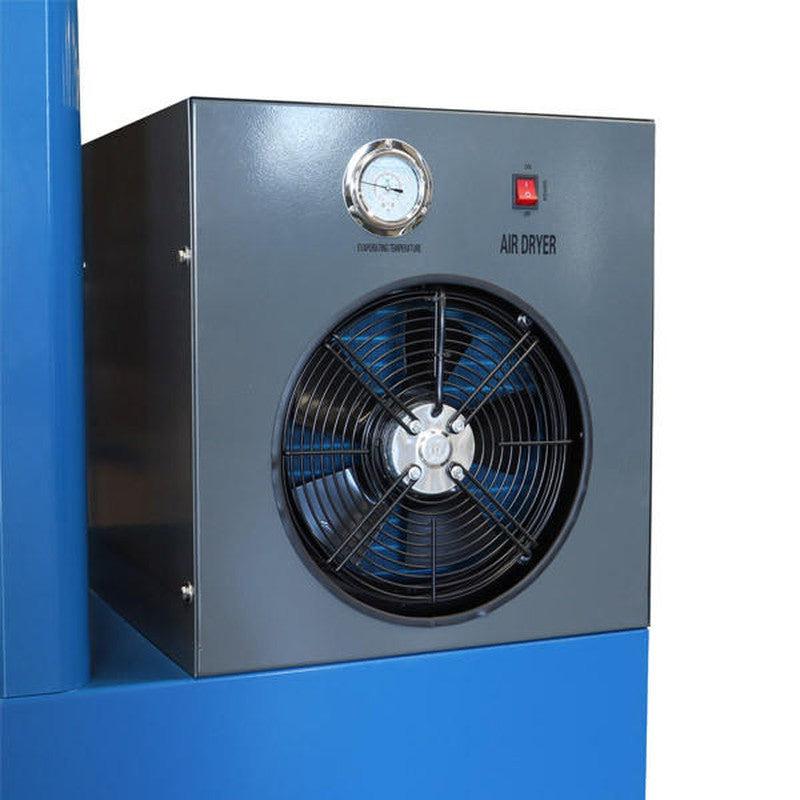

- Integrated air dryer: Ensures a clean and dry compressed air supply
- 7" display screen: Easily monitor usage and assess maintenance requirements
- Peace of mind: 2 year Hyundai warranty

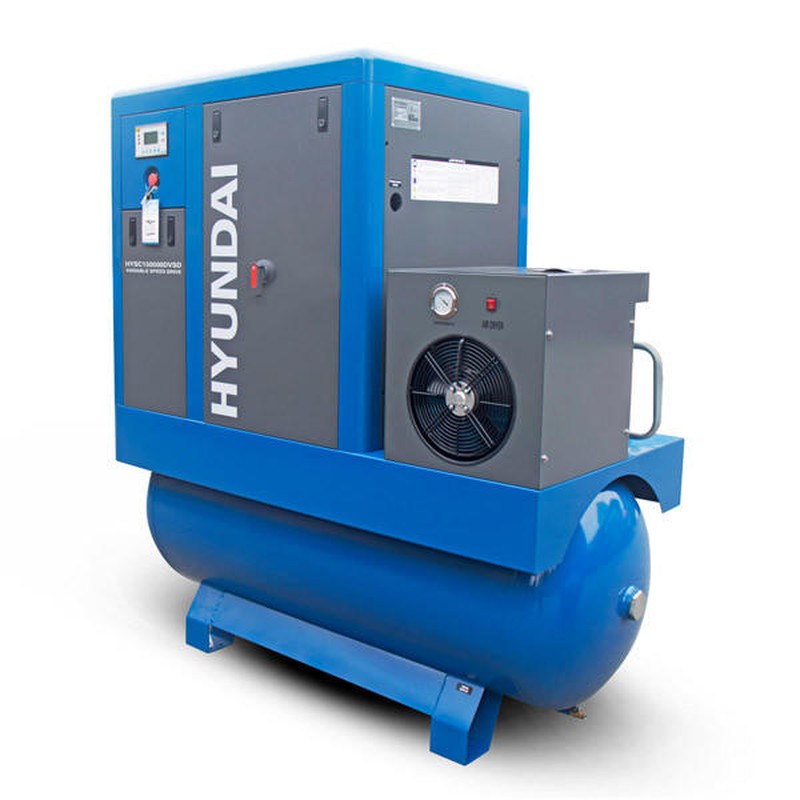

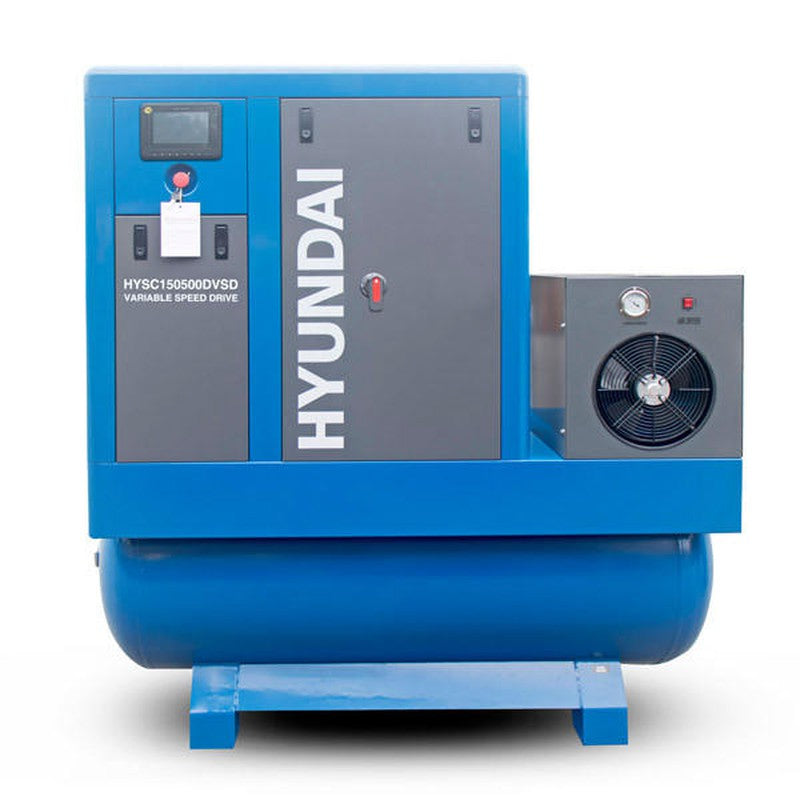

Permanent Magnet Screw Air Compressor with Dryer and Variable Speed Drive
Our all-in-one Hyundai HYSC150500DVSD integrates a power screw compressor, refrigerated air dryer and air receiver tank, providing a complete solution to produce clean and dry compressed air.
15hp 500L Tank
This Hyundai screw air compressor with dryer features a large 500L tank and 15hp motor, producing an impressive 145psi / 10bar output.
High-Quality Construction

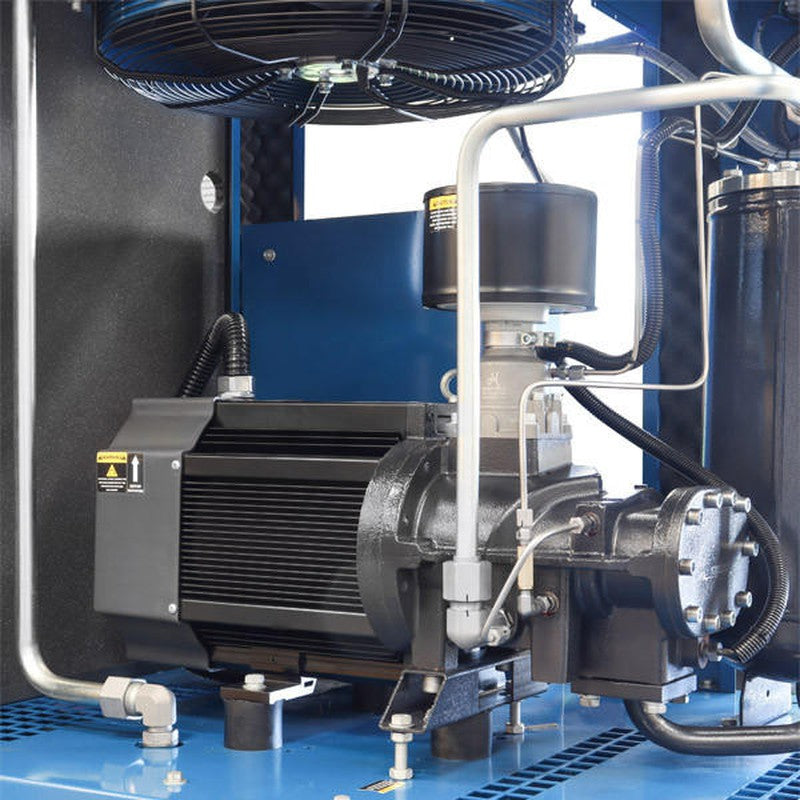

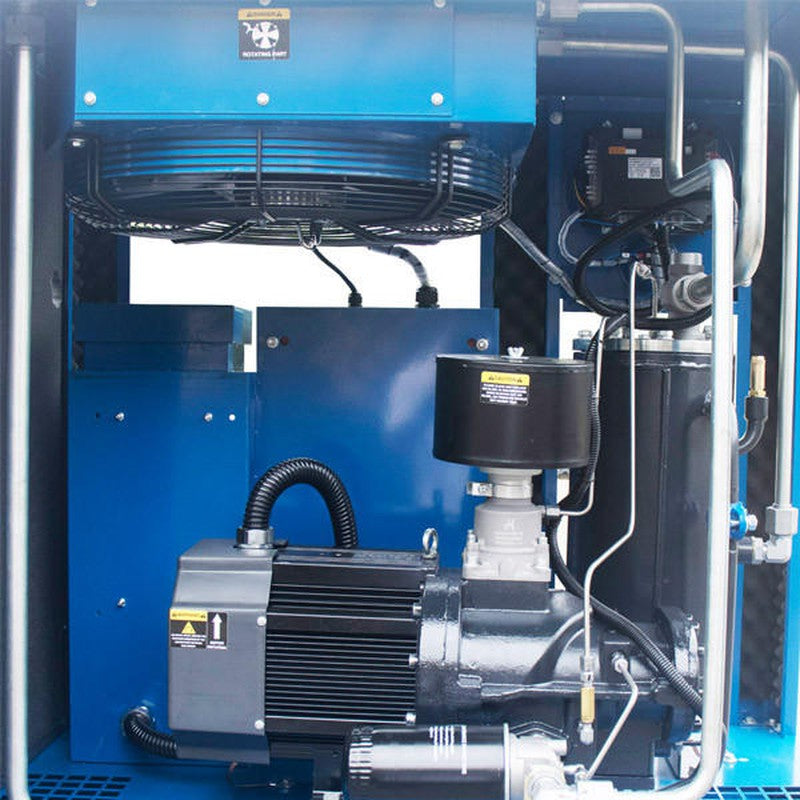

Our HYSC150500DVSD 500L air compressor has been designed and built with high-quality components including our reliable refrigerant compressor and large, durable heat exchanger, making this compressor one you can rely on for years to come.

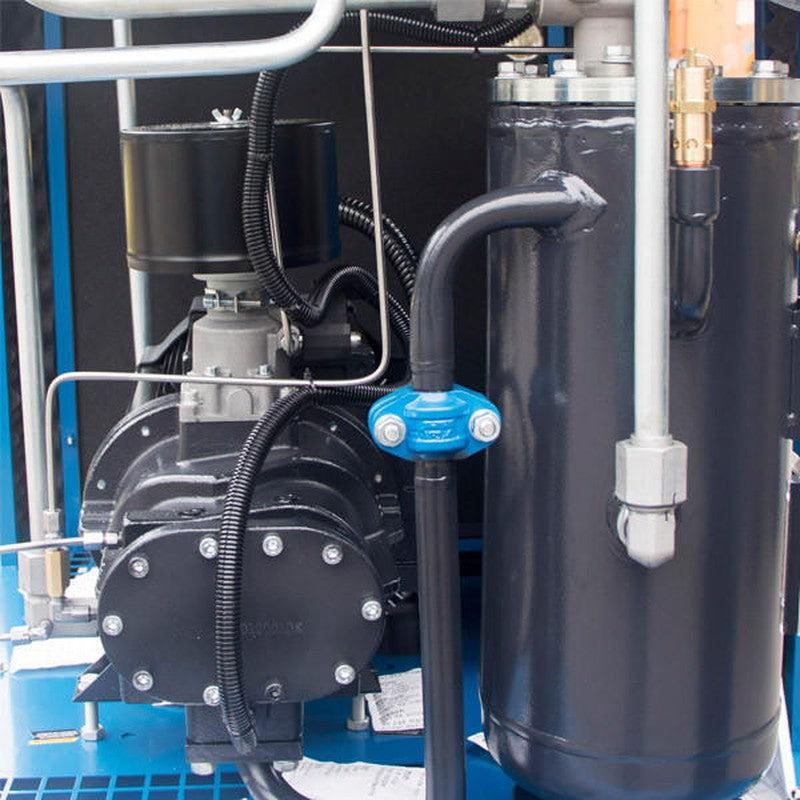

Highly Efficient Oil And Gas Separator
This air compressor comes fitted with an extra-large oil and gas separator system, which improves the efficiency of the way any oil is removed from the air supply, making the output less than 3ppm.
Variable Speed Drive
Unlike other models, our VSD model compressors boast a variable speed drive, meaning these air compressors match the output to the air flow required thanks to an in-built high-performance frequency converter, which carries out real-time vector calculations to keep the supply stable.
As the air compressors are not working at maximum levels at all times, this is more economical and also lengthens product lifespan too, meaning less maintenance is required and thus more savings for you.
Easy To Set Up
The Hyundai HYSC150500DVSD Air Compressor is so simple to install - all you need to do is to connect the outlet and drain pipes and plug it in and your compressed air supply is ready to use!
Integrated Safety Features
This powerful screw air compressor comes fitted with a 7” colour, touch-screen monitor, which monitors usage, but also comes with a range of integrated safety features including maintenance alerts and reminders, and will automatically shut itself down if left unattended for 24 hours.
Ideal For Garages And Workshops
This air compressor is ideal for range of different environments, including spray shops, tire-fitting garages, large workshops, small factories, etc.
Peace Of Mind
The HYSC150500DVSD comes with a 2 year Hyundai warranty with full UK parts and service backup for added peace of mind.
Specifications
| Model | HYSC150500DVSD |
|---|---|
| Start Method | Electric |
| Fuel/Power Source | Electric Hard Wired |
| Drive Type | VSD Direct Drive |
| Tank Capacity (L) | 500 |
| Tank Material | Steel |
| Cut-In Pressure (psi/bar) | 101.5/7 |
| Cut-Out Pressure (psi/bar) | 116/11.5 |
| Discharge Pressure (psi/bar) | 145/10 |
| Max Pressure (psi/bar) | 145/10 |
| Air Flow FAD (L/min) | 1510 @ 8 bar / 1377 @ 10 bar |
| Air Flow FAD (CFM) | 51 @8 bar / 44 @10 bar |
| Air Displacement (L/min) | 1590 @ 8 bar / 1450 @ 10bar |
| Air Displacement (CFM) | 51.2 |
| Air Outlet Connection | G3/4 |
| Outlet Pressure Regulation Type | Fixed |
| Phase | Three |
| Rated Power (kW) | 14 |
| Motor Power kW/hp | 11/15 |
| Pump (RPM) | 1960 |
| Speed (RPM) | 1960 |
| Frequency (Hz) | 50 |
| Noise Level @ 7m (dB) | 65 |
| Integral Air Dryer? | Yes |
| Gross Weight (kg) | 570 |
| Net Weight (kg) | 510 |
| Fully Assembled Dimensions (H x W x L) (mm) | 1685 x 700 x 1750 |
| Packaged Dimensions (H x W x L) (mm) | 2040 x 940 x 2100 |
| Product Type | Air Compressor |
| Warranty (years) | 2 |
| Model EAN | 5059608206531 |
| In The Box | Air Compressor & User Manual |
