Description
Key Features
- Powered by a 196cc 4-stroke recoil start petrol engine for reliable performance.
- Ideal for compacting soil, gravel and sand together for patios, driveways, conservatories and more.
- Equipped with a large fuel tank for long running.
- Fitted with a 530mm x 370mm plate for working effectively on large areas.
- Has a travelling speed of 25m/min, with a compaction depth of 250mm.
- Wheel kit included for increased maneuverability.

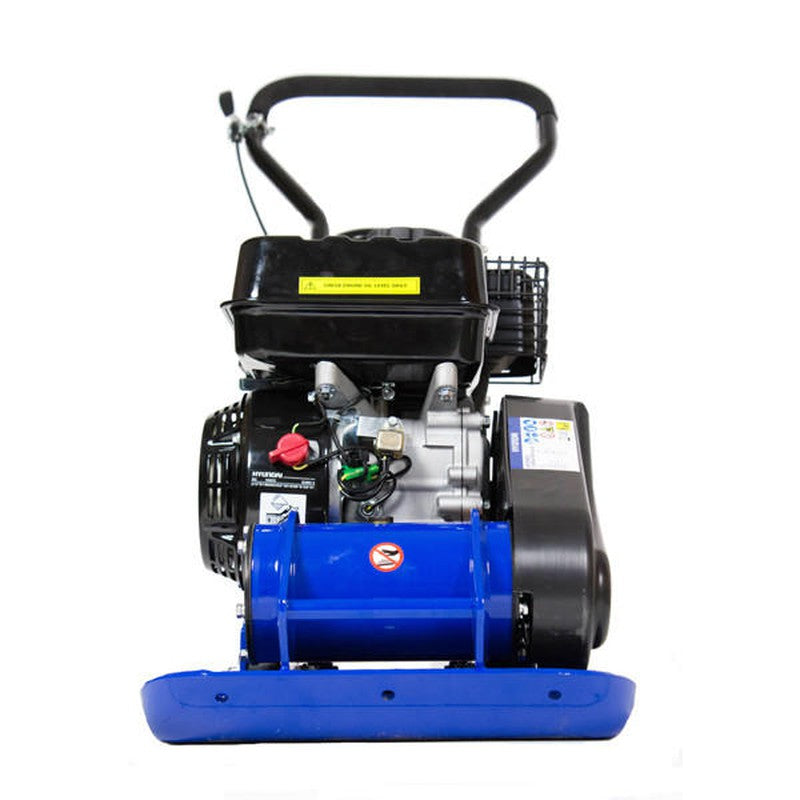

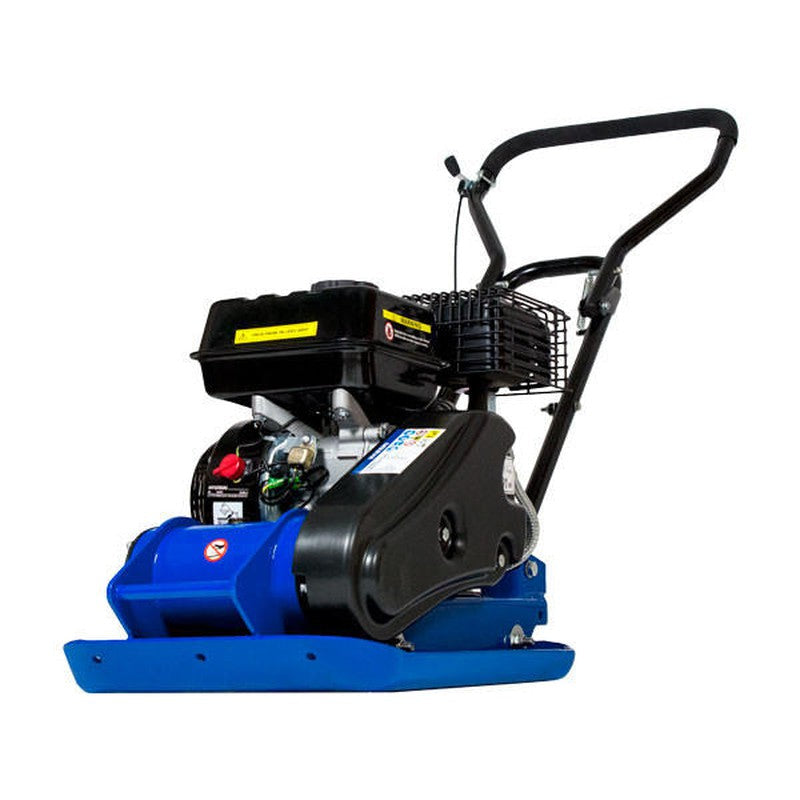

Hyundai Petrol Plate Compactor
The HYCP6570 is powered by a 196cc 4-stroke recoil start petrol engine, with a large fuel tank for long running. It's ideal for compacting loose soil, gravel and sand together to create a solid and even foundation, providing a cost-effective alternative to hiring for the building, construction and landscaping industries.
Large Compactor Plate
It's fitted with a large plate measuring 530mm x 370mm (L x W) for making quick work of large areas. It has a travelling speed of 25m/min, with a compaction depth of 250mm. For protection from knocks and bumps during construction work, the V-belt is covered by a rugged guard.
Suitable Uses
The handle features a soft grip cover for increased comfort, and for convenient storage the handle can also be folded down over the main unit. It's designed for building patios, driveways, block paving, garage extensions and conservatory foundations. A wheel kit is included for increased maneuverability when transporting the compactor plate from one job to the next.
Warranty
All Hyundai compactor plates are covered by a Hyundai 3 year platinum warranty.
Specifications
| Model | HYCP6570 |
|---|---|
| Start Method | Recoil |
| Compaction Depth (mm) | 250 |
| Plate Size (mm) | 530 x 370 |
| Centrifugal Force (N) | 11000 |
| Travel Speed (m/min) | 25 |
| Vibration value m/s² | 27.71 |
| Exciter Oil Capacity (ml) | 80 |
| Exciter Speed (RPM) | 5500 |
| Handle Type | Soft Grip |
| Safety Features | Oil Alarm |
| Engine Model | 168F |
| Engine Type | Hyundai 4-Stroke |
| Engine Size (cc) | 196 |
| Rated Power (hp) | 5.2 |
| Rated Speed (RPM) | 3600 |
| Fuel | Unleaded Petrol |
| Fuel Capacity (L) | 3.6 |
| Engine Oil | SAE30 or SAE15W40 |
| Engine Oil Capacity (ml) | 600 |
| Sound Level (db) | 91 |
| Gross Weight (kg) | 60 |
| Net Weight (kg) | 58 |
| Fully Assembled Dimensions (H x W x L) (mm) | 890 x 385 x 1140 |
| Package Dimensions (H x W x L) (mm) | 470 x 400 x 705 |
| Fuel/Power Source | Petrol |
| Product Type | Compactor Plate |
| Warranty (years) | 3 |
| Commercial Warranty (years) | 1 |
| Model EAN | 747150287843 |
| In The Box | HYCP6570 & Manual |
